* Ideal for printed circuit boards
* High case dielectric strength
* High surge current capability e4
* Typical IR less than 0.1 μA
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: For definitions of compliance please se

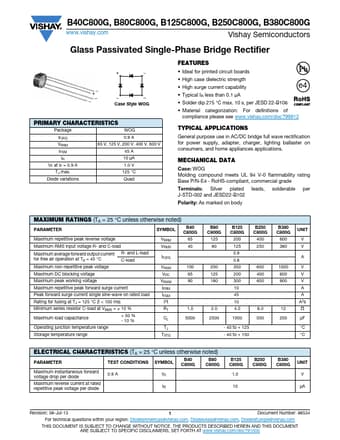

B250C800G Datasheet (80.17 KB)
B250C800G
80.17 KB
Single-phase bridge rectifier.
B40C800G, B80C800G, B125C800G, B250C800G, B380C800G
www.vishay.com
Vishay Semiconductors
Glass Passivated Single-Phase Bridge Rectifier
+
~
+~ ~.
