B380C800DM Glass Passivated Ultrafast Bridge Rectifier

B380C800DM Description

B40C800DM, B80C800DM, B125C800DM, B250C800DM, B380C800DM www.vishay.com Vishay General Semiconductor Glass Passivated Ultrafast Bridge Rectifier ~.

B380C800DM Features

* Ideal for automated placement
* High surge current capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106

B380C800DM Applications

* General purpose use in AC/DC bridge full wave rectification for SMPS, lighting ballaster, adapter, battery charger, home appliances, office equipment, and telecommunication applications. MECHANICAL DATA Case: DFM Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, co

📥 Download Datasheet

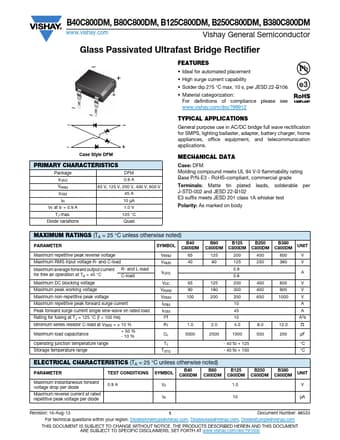

Preview of B380C800DM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B380C800DM
Manufacturer
Vishay ↗
File Size
75.65 KB
Datasheet
B380C800DM-Vishay.pdf
Description
Glass Passivated Ultrafast Bridge Rectifier
