B40C1500G, Glass Passivated Single-Phase Bridge Rectifier

B40C1500G, B80C1500G, B125C1500G, B250C1500G, B380C1500G www.vishay.com Vishay Semiconductors Glass Passivated Single-Phase Bridge Rectifier +~ +.

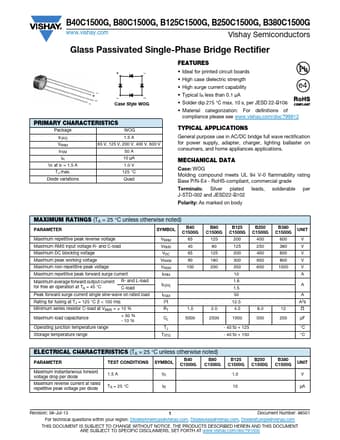

datasheet Preview Page 1 from Datasheet4u.com

B40C1500G-Vishay.pdf

B40C1500G Datasheet Preview — Preview of B40C1500G PDF

Datasheet Details

Part number:

B40C1500G

Manufacturer:

Vishay ↗

File Size:

77.64 KB

Description:

Glass Passivated Single-Phase Bridge Rectifier

Features

* Ideal for printed circuit boards
* High case dielectric strength
* High surge current capability e4
* Typical IR less than 0.1 μA
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: For definitions of compliance please see

Applications

* General purpose use in AC/DC bridge full wave rectification for power supply, adapter, charger, lighting ballaster on consumers, and home appliances applications. MECHANICAL DATA Case: WOG Molding compound meets UL 94 V-0 flammability rating Base P/N-E4 - RoHS-compliant, commercial grade Terminals
