BA783S-G, BA782S-G Datasheet - Vishay

BA783S-G - Band Switching Diodes

For electric bandswitching in radio and TV tuners in the frequency range of (50 to 1000) MHz.

The dynamic forward resistance is constant and very small over a wide range of frequency and forward current.

The reverse capacitance is also small and largely independent of the reverse voltage. PARTS TA

BA783S-G Features

* Silicon epitaxial planar diode switches

* AEC-Q101 qualified

* Base P/N-G3 - green, commercial grade

* Base P/N-HG3 - green, AEC-Q101 qualified

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 MECHANICAL DATA Cas

BA782S-G-Vishay.pdf

This datasheet PDF includes multiple part numbers: BA783S-G, BA782S-G. Please refer to the document for exact specifications by model.

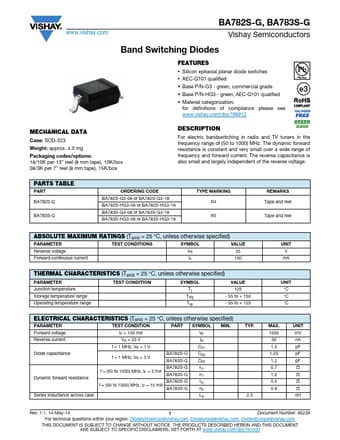

BA783S-G Datasheet Preview Page 2 BA783S-G Datasheet Preview Page 3
