BA782S, BA783S Datasheet - Vishay

BA782S Band Switching Diodes

For electric bandswitching in radio and TV tuners in the frequency range of (50 to 1000) MHz. The dynamic forward resistance is constant and very small over a wide range of frequency and forward current. The reverse capacitance is also small and largely independent of the reverse voltage. PARTS TAB.

BA782S Features

* Silicon epitaxial planar diode switches

* AEC-Q101 qualified

* Base P/N-E3 - RoHS-compliant, commercial grade

* Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified

* Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 DES

BA783S-Vishay.pdf

This datasheet PDF includes multiple part numbers: BA782S, BA783S. Please refer to the document for exact specifications by model.

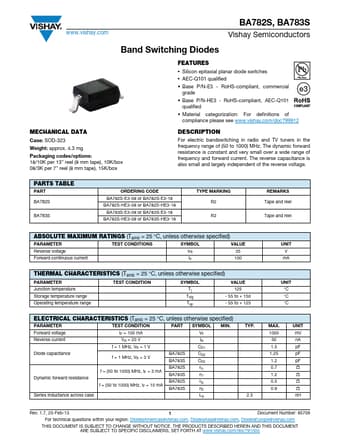

BA782S Datasheet Preview Page 2 BA782S Datasheet Preview Page 3
