BA7820, BA7805 Datasheet - Rohm

BA7820 78-Series Regulators

BA78 * *, BA78M * * series are three-terminal regulators available with several fixed output voltages. It supplies the stable fixes voltage from unstable direct input voltage. The useful output voltage lineup is 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V with 0.5A /.

BA7820 Features

* 1) Built-in over-current protection circuit and thermal shutdown circuit 2) High ripple rejection 3) Available TO220CP-3, TO252-3 package to a wide range application 4) Compatible replacement to competitor products 5) Various voltage lineup (5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V)

* Ap

BA7805-Rohm.pdf

This datasheet PDF includes multiple part numbers: BA7820, BA7805. Please refer to the document for exact specifications by model.

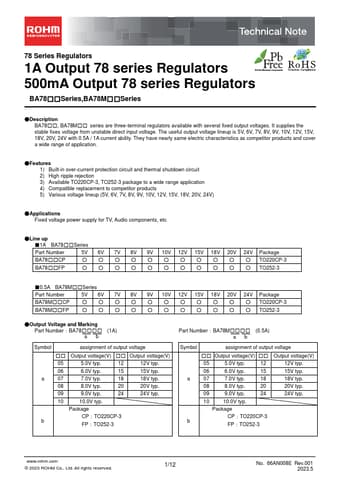

BA7820 Datasheet Preview Page 2 BA7820 Datasheet Preview Page 3

Datasheet Details

Part number:

BA7820, BA7805

Manufacturer:

ROHM ↗

File Size:

867.56 KB

Description:

78-series regulators.

Note:

This datasheet PDF includes multiple part numbers: BA7820, BA7805.
Please refer to the document for exact specifications by model.
