BA783

Band Switching Diodes

Vishay

BA783 Features

* Silicon epitaxial planar diode switches

* AEC-Q101 qualified

* Base P/N-E3 - RoHS-compliant, commercial grade

* Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified

* Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 DES

BA783 General Description

For electric bandswitching in radio and TV tuners in the frequency range of (50 to 1000) MHz. The dynamic forward resistance is constant and very small over a wide range of frequency and forward current. The reverse capacitance is also small and largely independent of the reverse voltage. PARTS TAB.

BA783 Datasheet (69.96 KB)

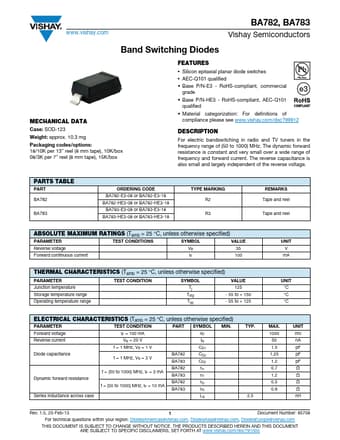

BA783 Datasheet Preview — Preview of BA783 PDF

Datasheet Details

Part number:

BA783

Manufacturer:

Vishay ↗

File Size:

69.96 KB

Description:

Band switching diodes.
www.vishay.com BA782, BA783 Vishay Semiconductors Band Switching Diodes MECHANICAL DATA Case: SOD-123 Weight: approx. 10.3 mg Packaging codes/optio.
