BAT54WS Schottky Diode

BAT54WS Description

www.vishay.com BAT54WS Vishay Semiconductors Small Signal Schottky Diode DESIGN SUPPORT TOOLS click logo to get started Models Available MECHANICA.

BAT54WS Features

* These diodes feature very low turn-on voltage and fast switching
* These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges
* AEC-Q101 qualified available
* Base P/N-E3 - RoHS-compliant, commercial grade

📥 Download Datasheet

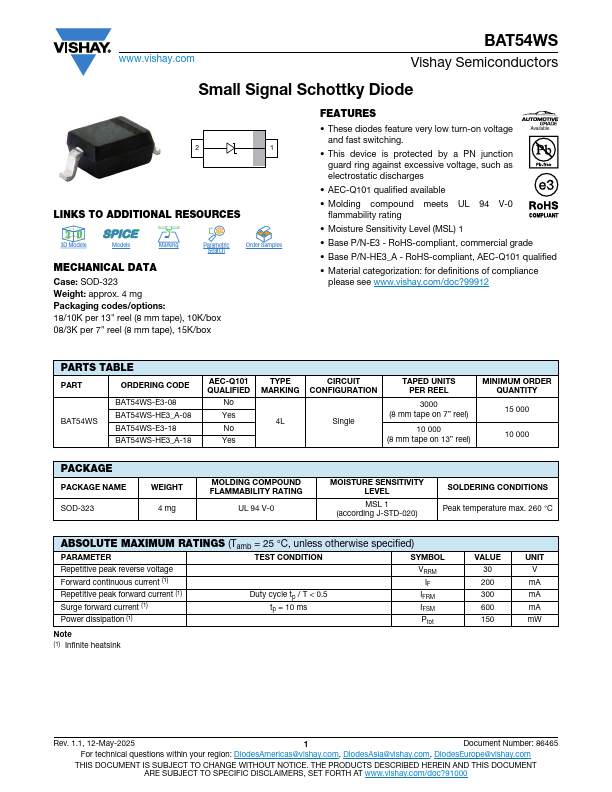

Preview of BAT54WS PDF

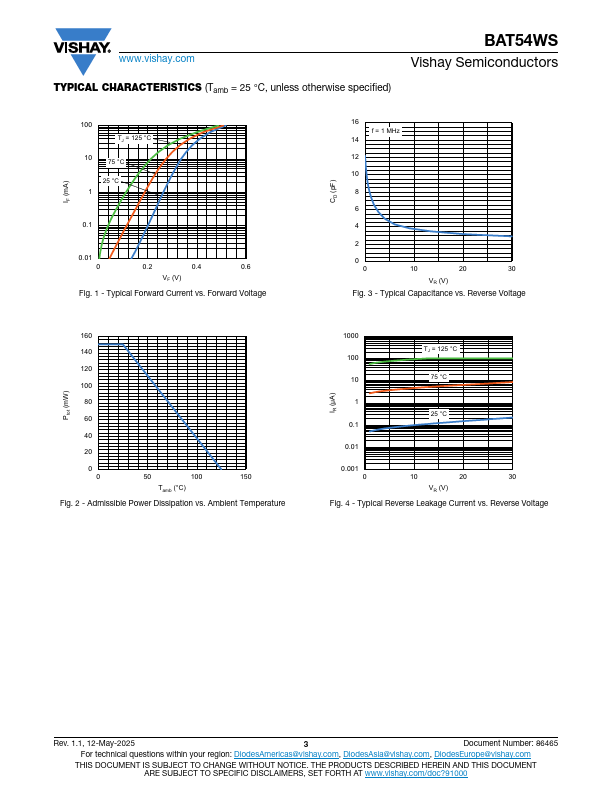

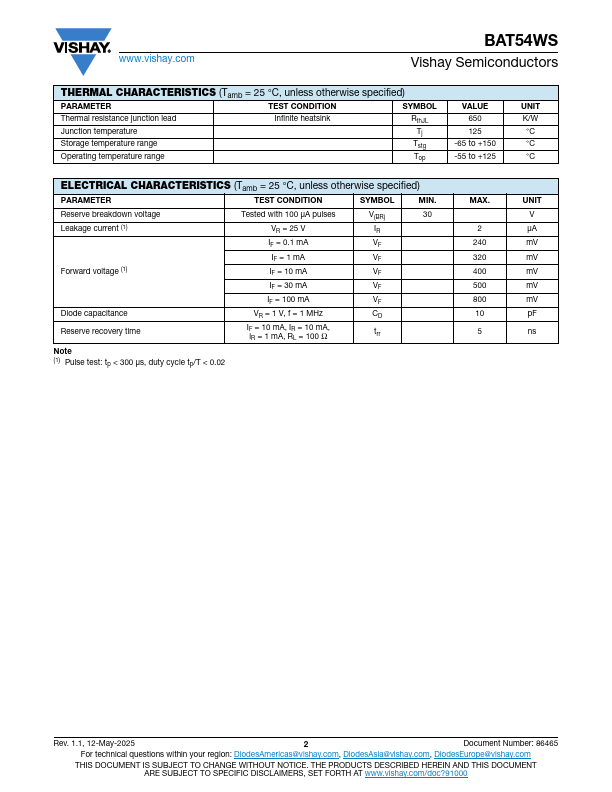

datasheet Preview Page 2 datasheet Preview Page 3
