BAV99 - Small Signal Switching Diode

Vishay

📥 Download Datasheet

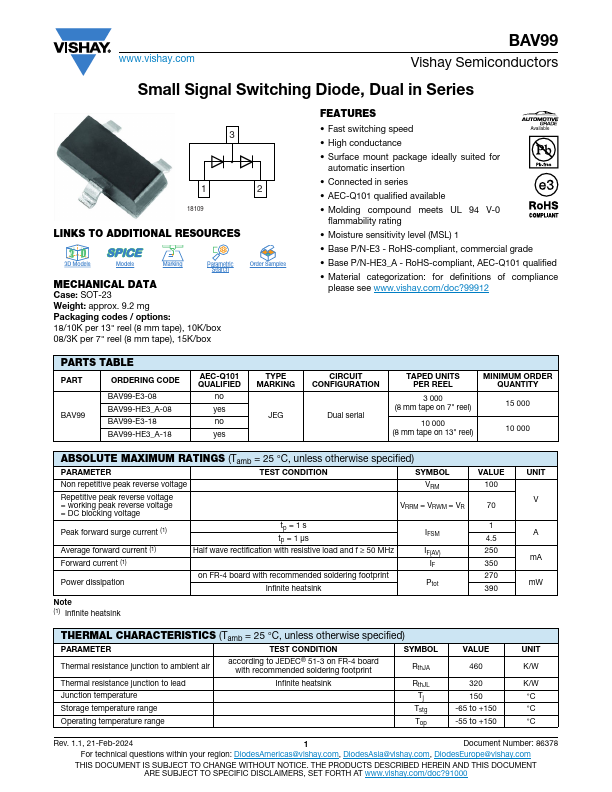

BAV99 Datasheet Preview — Preview of BAV99 PDF

datasheet Preview Page 2

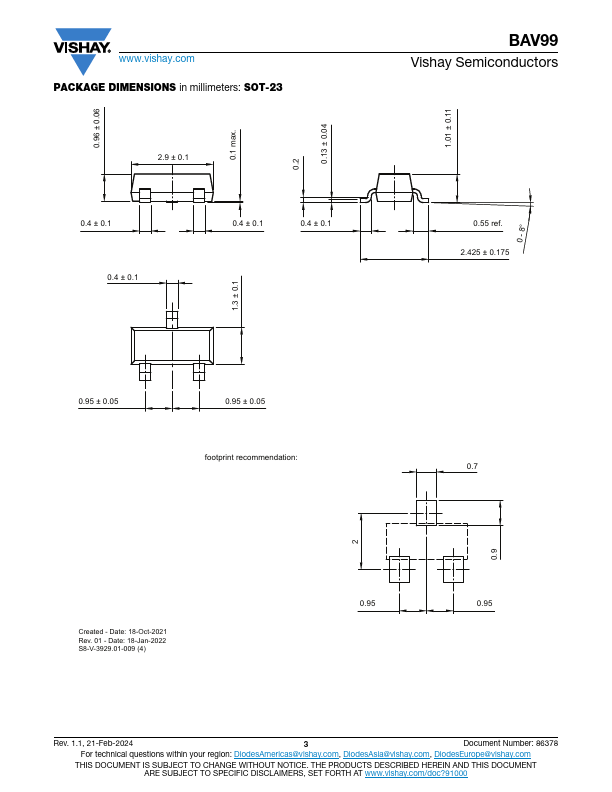

datasheet Preview Page 3

Datasheet Details

Part number	BAV99
Manufacturer	Vishay
File Size	115.81 KB
Description	Small Signal Switching Diode
Datasheet	BAV99-Vishay.pdf

BAV99 Product details

Features

Fast switching speed Available.
High conductance.
Surface mount package ideally suited for automatic insertion.
Connected in series.
AEC-Q101 qualified available.
Molding compound meets UL 94 V-0 flammability rating.
Moisture sensitivity level (MSL) 1.
Base P/N-E3 - RoHS-compliant, commercial grade.
Base P/N-HE3_A - RoHS-compliant, AEC-Q101 qualified.
Material categorization: for definitions of.
