BAV99-G - Small Signal Switching Diode

Datasheet Summary

Features

Fast switching speed.
High conductance.
Surface mount package ideally suited for automatic insertion.
Connected in series.
AEC-Q101 qualified available (part number on request).
Base P/N-G3 - green, commercial grade.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 PARTS TABLE PART.

Datasheet Details

Part number	BAV99-G
Manufacturer	Vishay
File Size	99.95 KB
Description	Small Signal Switching Diode
Datasheet	BAV99-G Datasheet
Additional preview pages of the BAV99-G datasheet.

📁 Similar Datasheet

BAV99-226 - Three Terminals SMD Switching Diode (TAITRON)

BAV99-AU - SURFACE MOUNT SWITCHING DIODES (Pan Jit International)

BAV99-Q - High-speed switching diode (nexperia)

BAV99 - Silicon Epitaxial Planar Switching Diodes (Toshiba)

BAV99 - SWITCHING DIODE (SMC Diode)

BAV99 - SMD Small Signal Diodes (Diotec)

BAV99 - 200mA 70V High Conductance Ultra-Fast Switching Diode (ON Semiconductor)

BAV99 - SURFACE MOUNT FAST SWITCHING DIODE (LITE-ON)

BAV99 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)

BAV99 - Silicon Switching Diode (Infineon)

Full PDF Text Transcription

Click to expand full text

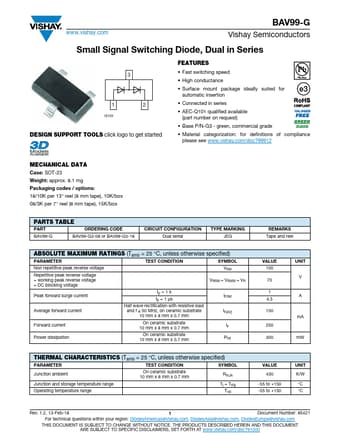

www.vishay.com BAV99-G Vishay Semiconductors Small Signal Switching Diode, Dual in Series 3 1 2 18109 DESIGN SUPPORT TOOLS click logo to get started Models Available MECHANICAL DATA Case: SOT-23 Weight: approx. 8.1 mg Packaging codes / options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box FEATURES • Fast switching speed • High conductance • Surface mount package ideally suited for automatic insertion • Connected in series • AEC-Q101 qualified available (part number on request) • Base P/N-G3 - green, commercial grade • Material categorization: for definitions of compliance please see www.vishay.
