CH02016 - Thin Film Chip Resistor

Vishay

📥 Download Datasheet

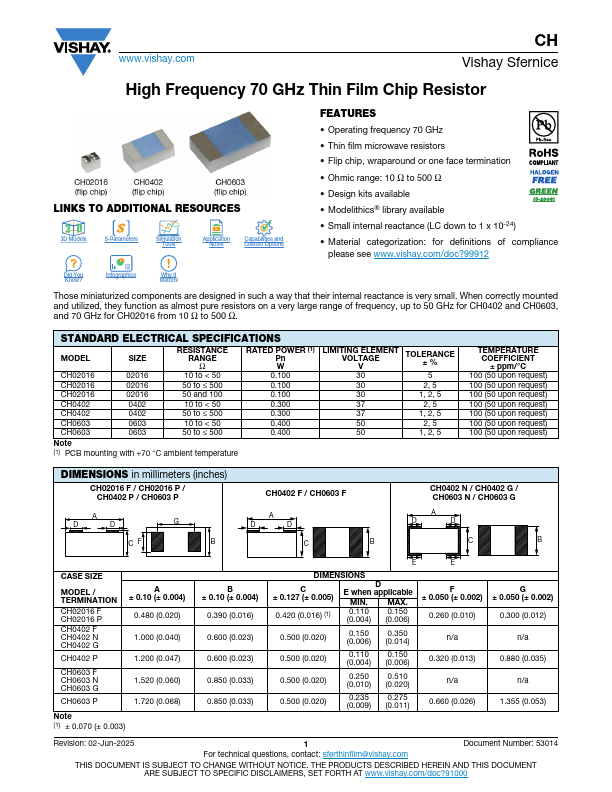

CH02016 Datasheet Preview — Preview of CH02016 PDF

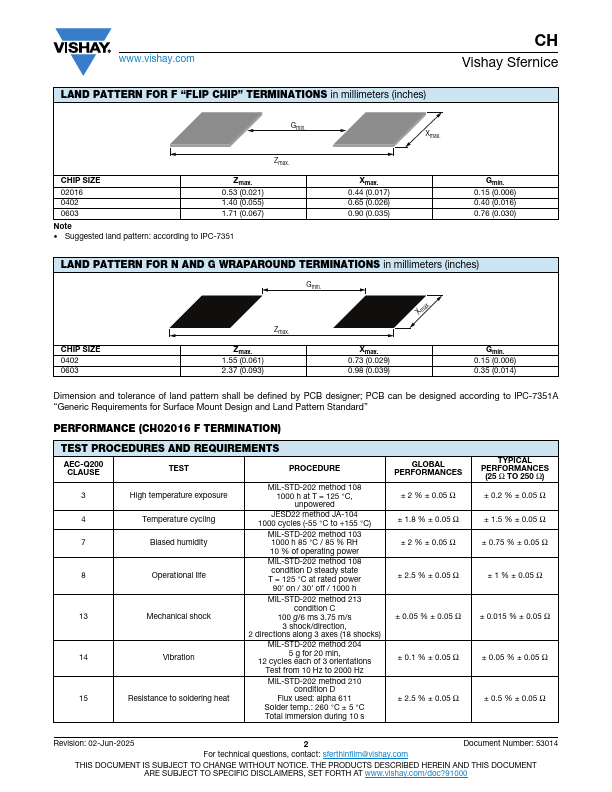

datasheet Preview Page 2

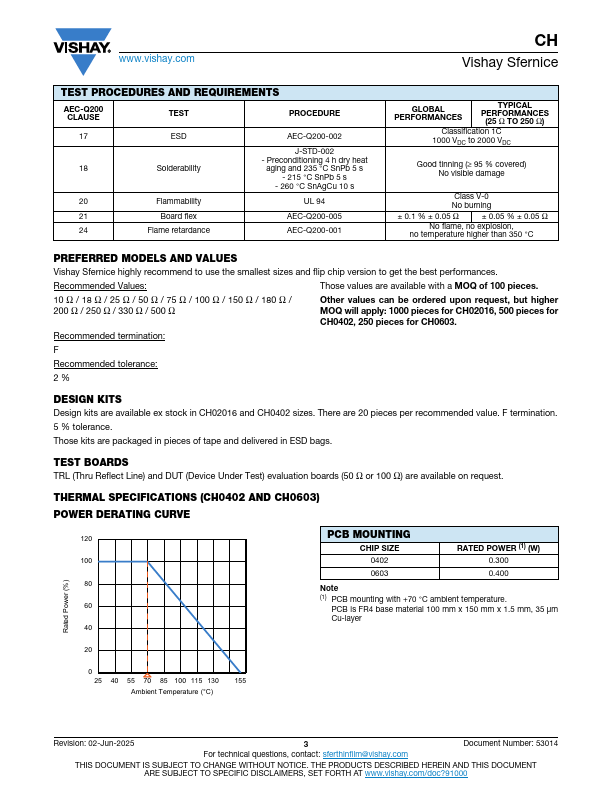

datasheet Preview Page 3

Datasheet Details

Part number	CH02016
Manufacturer	Vishay
File Size	194.20 KB
Description	Thin Film Chip Resistor
Datasheet	CH02016-Vishay.pdf

CH02016 Product details

Features

Operating frequency 70 GHz.
Thin film microwave resistors.
Flip chip, wraparound or one face termination.
Ohmic range: 10 Ω to 500 Ω.
Design kits available.
Modelithics® library available.
Small internal reactance (LC down to 1 x 10-24).
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Did You Know? Infographics Why It Matters Those miniaturized components are designed in such a.
