CH0402, CH02016 Thin Film Chip Resistor

CH0402 Description

www.vishay.com CH Vishay Sfernice High Frequency 70 GHz Thin Film Chip Resistor LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models S-Parameters Simul.

CH0402 Features

* Operating frequency 70 GHz
* Thin film microwave resistors
* Flip chip, wraparound or one face termination
* Ohmic range: 10 Ω to 500 Ω
* Design kits available
* Modelithics® library available
* Small internal reactance (LC down to 1 x 10-24)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CH0402, CH02016. Please refer to the document for exact specifications by model.

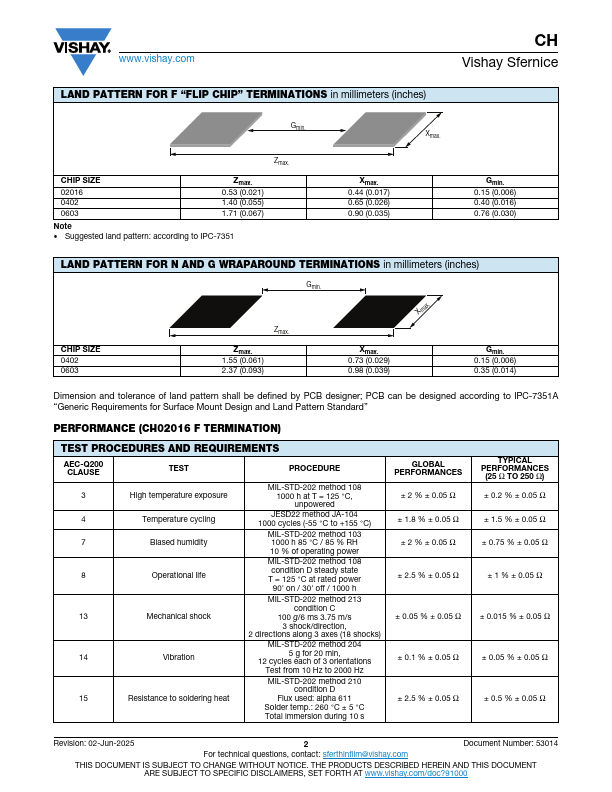

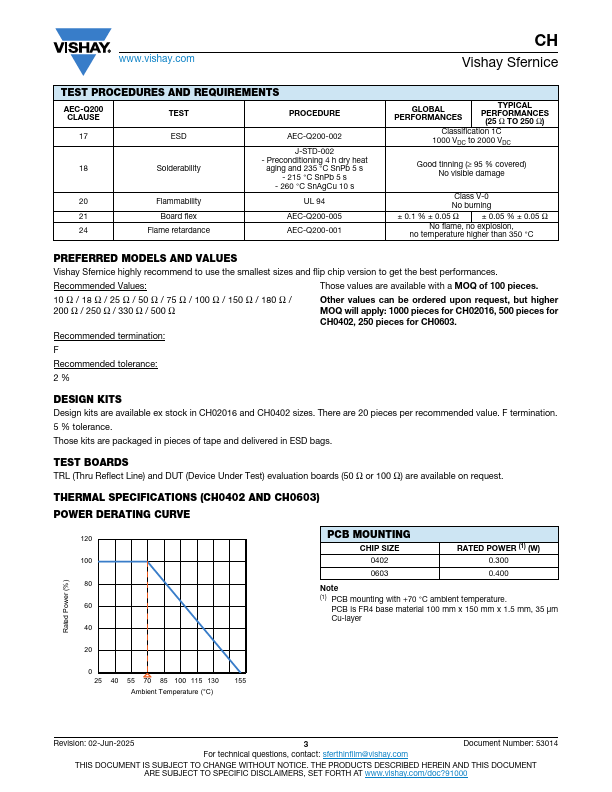

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CH0402, CH02016
Manufacturer
Vishay ↗
File Size
194.20 KB
Datasheet
CH02016-Vishay.pdf
Description
Thin Film Chip Resistor
Note
This datasheet PDF includes multiple part numbers: CH0402, CH02016.
Please refer to the document for exact specifications by model.
