DG306B, DG304B Datasheet - Vishay

DG306B CMOS Analog Switches

The DG304B, DG306B and DG307B monolithic CMOS switches were designed for applications in communications, instrumentation and process control. This series is well suited for applications requiring fast switching and nearly flat on-resistance over the entire analog range. Designed on the Vishay Silico.

DG306B Features

* ± 15 V input range

* Fast switching - tON: 110 ns

* Low RDS(on): 30 

* Single supply operation

* CMOS logic levels

* Micropower: 30 nW BENEFITS

* Full rail-to-rail analog signal range

* Low signal error

* Wide dynamic range

DG304B-Vishay.pdf

This datasheet PDF includes multiple part numbers: DG306B, DG304B. Please refer to the document for exact specifications by model.

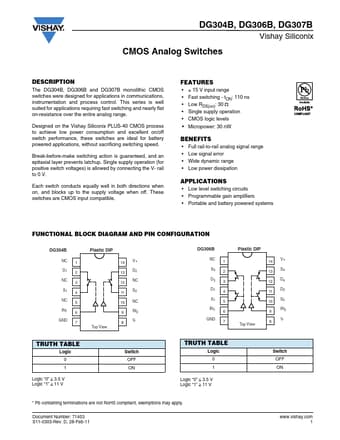

DG306B Datasheet Preview Page 2 DG306B Datasheet Preview Page 3

Datasheet Details

Part number:

DG306B, DG304B

Manufacturer:

Vishay ↗

File Size:

110.88 KB

Description:

Cmos analog switches.

Note:

This datasheet PDF includes multiple part numbers: DG306B, DG304B.
Please refer to the document for exact specifications by model.
