DZ23C15, DZ23C2V7 Small Signal Zener Diodes

Vishay

Description

www.vishay.com DZ23 Series Vishay Semiconductors Small Signal Zener Diodes 2 1 3 LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Models MARKING.

📥 Download Datasheet

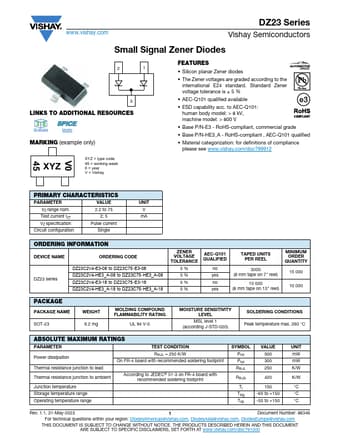

DZ23C15 Datasheet Preview — This datasheet PDF includes multiple part numbers: DZ23C15, DZ23C2V7. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DZ23C15, DZ23C2V7
Manufacturer: Vishay ↗
File Size: 133.28 KB
Datasheet: DZ23C2V7-Vishay.pdf
Description: Small Signal Zener Diodes
Note: This datasheet PDF includes multiple part numbers: DZ23C15, DZ23C2V7.
Please refer to the document for exact specifications by model.

Features

* Silicon planar Zener diodes
* The Zener voltages are graded according to the international E24 standard. Standard Zener voltage tolerance is ± 5 %
* AEC-Q101 qualified available
* ESD capability acc. to AEC-Q101: human body model: > 8 kV, machine model: > 800 V
