EDF1AM Miniature Glass Passivated Ultrafast Bridge Rectifier

EDF1AM Description

www.vishay.com EDF1AM, EDF1BM, EDF1CM, EDF1DM Vishay General Semiconductor Miniature Glass Passivated Ultrafast Bridge Rectifier ~ ~ ~ ~ Case Styl.

EDF1AM Features

* UL recognition, file number E54214
* Ideal for printed circuit boards
* Ultrafast reverse recovery time for high frequency
* Applicable for automative insertion
* High surge current capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106

EDF1AM Applications

* General purpose use in AC/DC bridge full wave rectification for SMPS, lighting ballaster, adapter, battery charger, home appliances, office equipment, and telecommunication applications. MECHANICAL DATA Case: DFM Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-c

📥 Download Datasheet

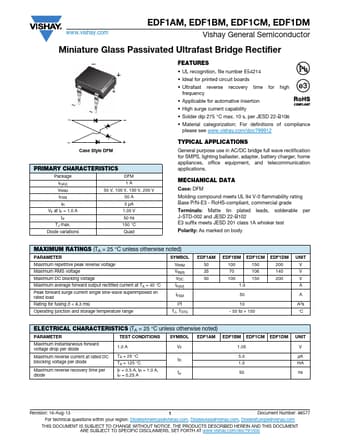

Preview of EDF1AM PDF
