EDF1BM, EDF1AM Miniature Glass Passivated Ultrafast Bridge Rectifier

EDF1BM Description

www.vishay.com EDF1AM, EDF1BM, EDF1CM, EDF1DM Vishay General Semiconductor Miniature Glass Passivated Ultrafast Bridge Rectifier ~ ~ ~ ~ Case Styl.

EDF1BM Features

* UL recognition, file number E54214
* Ideal for printed circuit boards
* Ultrafast reverse recovery time for high frequency
* Applicable for automative insertion
* High surge current capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106

EDF1BM Applications

* General purpose use in AC/DC bridge full wave rectification for SMPS, lighting ballaster, adapter, battery charger, home appliances, office equipment, and telecommunication applications. MECHANICAL DATA Case: DFM Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-c

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EDF1BM, EDF1AM. Please refer to the document for exact specifications by model.

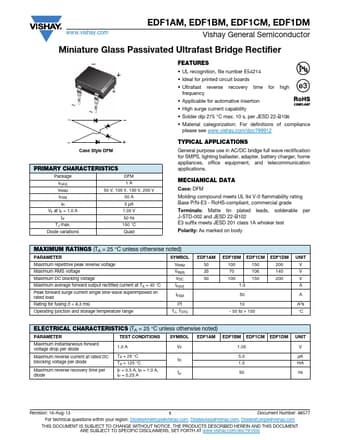

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EDF1BM, EDF1AM
Manufacturer
Vishay ↗
File Size
73.28 KB
Datasheet
EDF1AM-Vishay.pdf
Description
Miniature Glass Passivated Ultrafast Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: EDF1BM, EDF1AM.
Please refer to the document for exact specifications by model.
