FC0402 Thin Film Surface Mount Chip

Vishay

FC0402 Description

www.vishay.com FC Vishay Dale Thin Film High Frequency (Up to 40 GHz) Resistor, Thin Film Surface Mount Chip LINKS TO ADDITIONAL RESOURCES S-Param.

FC0402 Features

* Small standard size 0402 case size
* Edge trimmed block resistors
* High purity alumina substrate
* Ohmic range (10 Ω to 1000 Ω) Available Available
* Small internal reactance (< 10 mΩ)
* Low TCR (down to ± 25 ppm/°C) Available
* Epoxy

FC0402 Applications

* Low noise amplifiers
* Attenuation
* Line termination STANDARD ELECTRICAL SPECIFICATIONS TEST SPECIFICATIONS Material Passivated nichrome Resistance Range 10 Ω to 1000 Ω TCR: Absolute ± 25 ppm/°C to ± 100 ppm/°C Tolerance: Absolute ± 0.1 % to ± 5.0 % Stability:

📥 Download Datasheet

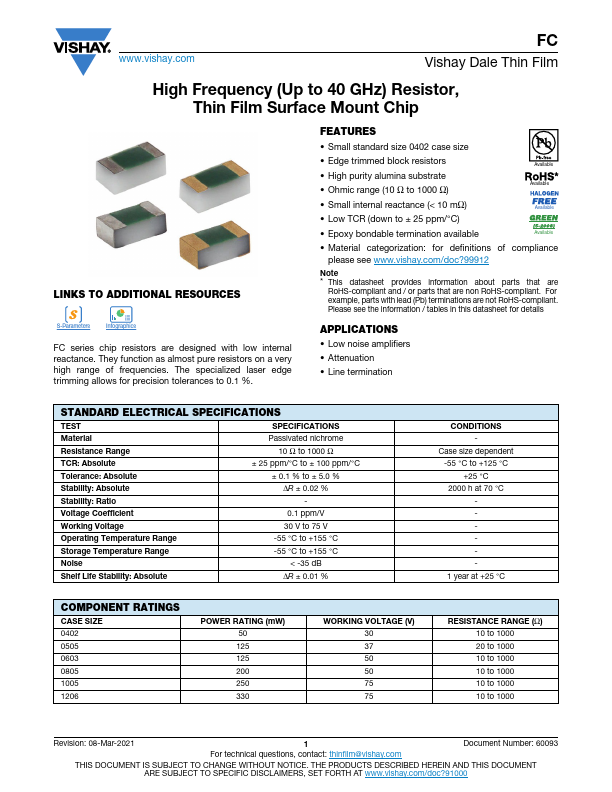

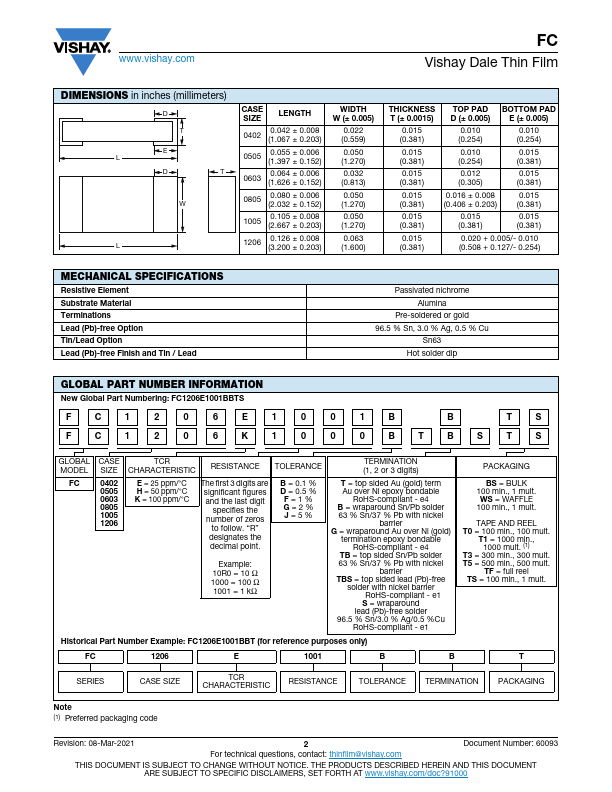

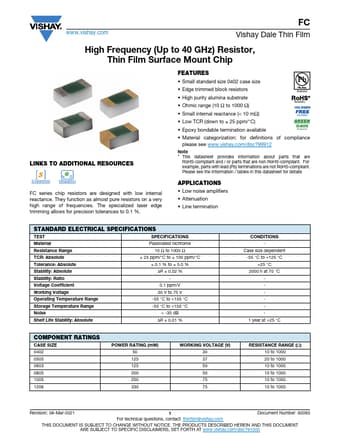

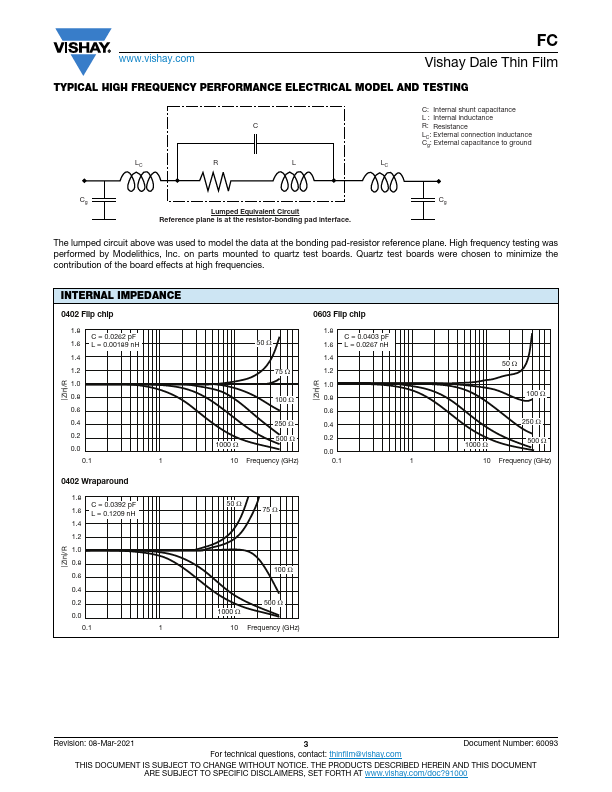

FC0402 Datasheet Preview — Preview of FC0402 PDF

Datasheet Details

Part number: FC0402
Manufacturer: Vishay ↗
File Size: 107.51 KB
Datasheet: FC0402-Vishay.pdf
Description: Thin Film Surface Mount Chip
