FC0505, FC0402 Thin Film Surface Mount Chip

Vishay

Description

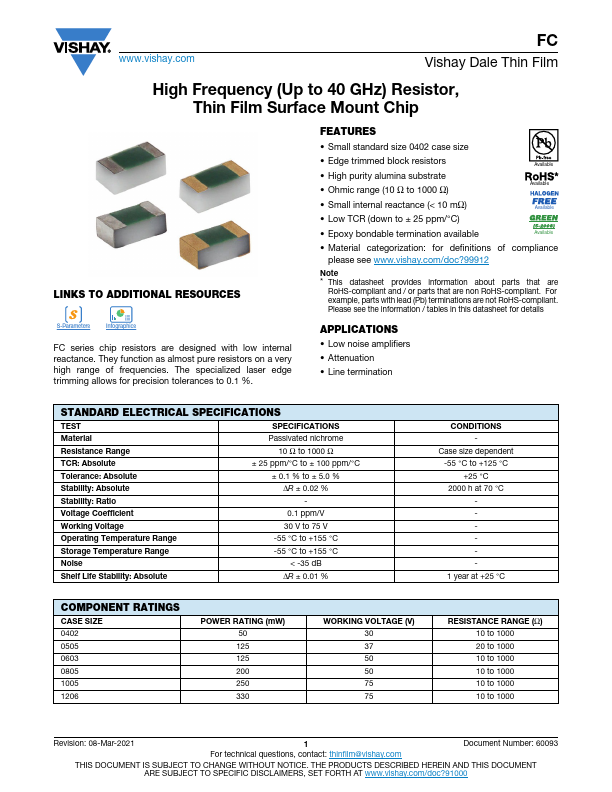

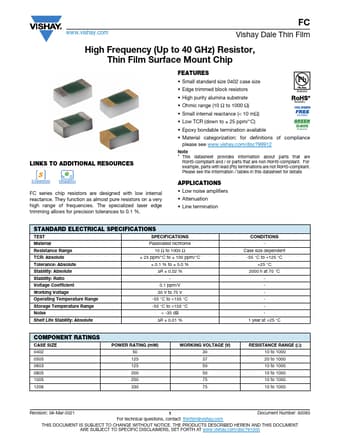

www.vishay.com FC Vishay Dale Thin Film High Frequency (Up to 40 GHz) Resistor, Thin Film Surface Mount Chip LINKS TO ADDITIONAL RESOURCES S-Param.

📥 Download Datasheet

FC0505 Datasheet Preview — This datasheet PDF includes multiple part numbers: FC0505, FC0402. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: FC0505, FC0402
Manufacturer: Vishay ↗
File Size: 107.51 KB
Datasheet: FC0402-Vishay.pdf
Description: Thin Film Surface Mount Chip
Note: This datasheet PDF includes multiple part numbers: FC0505, FC0402.
Please refer to the document for exact specifications by model.

Features

* Small standard size 0402 case size
* Edge trimmed block resistors
* High purity alumina substrate
* Ohmic range (10 Ω to 1000 Ω) Available Available
* Small internal reactance (< 10 mΩ)
* Low TCR (down to ± 25 ppm/°C) Available
* Epoxy

Applications

* Low noise amplifiers
* Attenuation
* Line termination STANDARD ELECTRICAL SPECIFICATIONS TEST SPECIFICATIONS Material Passivated nichrome Resistance Range 10 Ω to 1000 Ω TCR: Absolute ± 25 ppm/°C to ± 100 ppm/°C Tolerance: Absolute ± 0.1 % to ± 5.0 % Stability:
