FX5545G105

6.5W 2.0A DC/DC Buck Converter

Vishay

FX5545G105 Features

* Fully integrated DC/DC converter High efficiency over large load range 100% duty cycle Power density - more than 240W/inch3 1µA shutdown current 2.7V to 6V input range (1Li+ and 3-

FX5545G105 General Description

application note is available at www.vishay.com/doc?10119
*
*Note: if not used must be connected to Vin. 13, 17 14, 18 15, 19 16, 20 RECOMMENDED PAD PATTERN in inches [millimeters] A D F A B D F 0.1 ± 0.01 [2.54 ± 0.25] 0.03 ± 0.001 [0.8 ± 0.02] 0.02 ± 0.001 [0.5 ± 0.02] A TAPE AND .

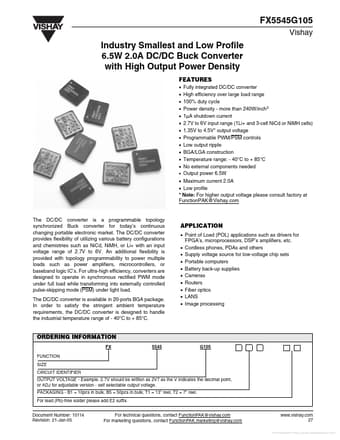

FX5545G105 Datasheet (210.48 KB)

FX5545G105 Datasheet Preview — Preview of FX5545G105 PDF

Datasheet Details

Part number:

FX5545G105

Manufacturer:

Vishay ↗

File Size:

210.48 KB

Description:

6.5w 2.0a dc/dc buck converter.
