GBPC110, GBPC1005 Glass Passivated Single-Phase Bridge Rectifier

GBPC110 Description

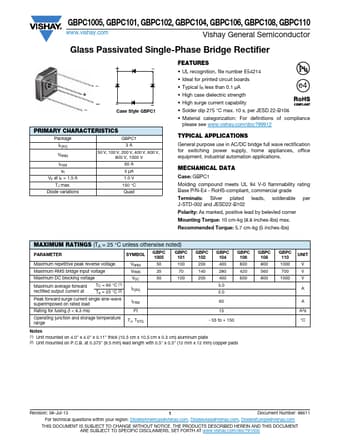

GBPC1005, GBPC101, GBPC102, GBPC104, GBPC106, GBPC108, GBPC110 www.vishay.com Vishay General Semiconductor Glass Passivated Single-Phase Bridge Rec.

GBPC110 Features

* UL recognition, file number E54214
* Ideal for printed circuit boards
* Typical IR less than 0.1 μA
* High case dielectric strength e4
* High surge current capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categoriza

GBPC110 Applications

* General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances, office equipment, industrial automation applications. MECHANICAL DATA Case: GBPC1 Molding compound meets UL 94 V-0 flammability rating Base P/N-E4 - RoHS-comp

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBPC110, GBPC1005. Please refer to the document for exact specifications by model.
