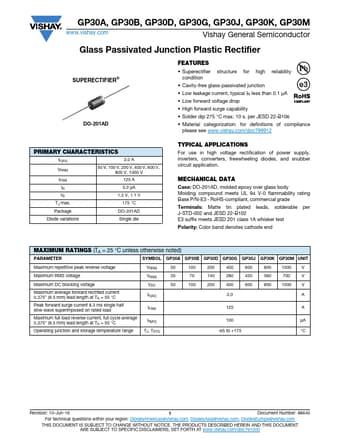

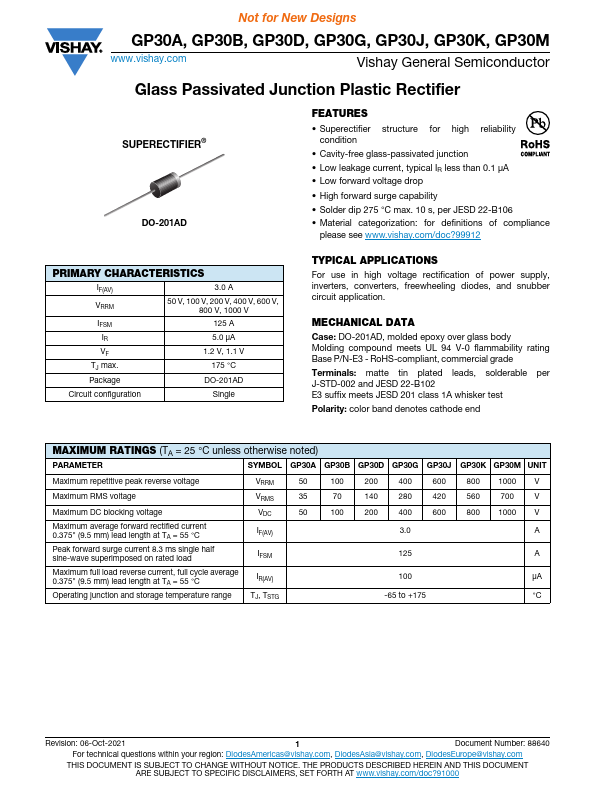

GP30J, GP30A Glass Passivated Junction Plastic Rectifier

Vishay

Description

GP30A, GP30B, GP30D, GP30G, GP30J, GP30K, GP30M www.vishay.com Vishay General Semiconductor Glass Passivated Junction Plastic Rectifier SUPERECTIF.

📥 Download Datasheet

GP30J Datasheet Preview — This datasheet PDF includes multiple part numbers: GP30J, GP30A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GP30J, GP30A
Manufacturer: Vishay ↗
File Size: 71.39 KB
Datasheet: GP30A-Vishay.pdf
Description: Glass Passivated Junction Plastic Rectifier
Note: This datasheet PDF includes multiple part numbers: GP30J, GP30A.
Please refer to the document for exact specifications by model.

Features

* Superectifier structure for high reliability condition
* Cavity-free glass-passivated junction
* Low leakage current, typical IR less than 0.1 μA
* Low forward voltage drop
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B1

Applications

* For use in high voltage rectification of power supply, inverters, converters, freewheeling diodes, and snubber circuit application. MECHANICAL DATA Case: DO-201AD, molded epoxy over glass body Molding compound meets UL 94 V-0 flammability r
