GP30B, GP30A - Glass Passivated Junction Plastic Rectifier

Vishay

📥 Download Datasheet

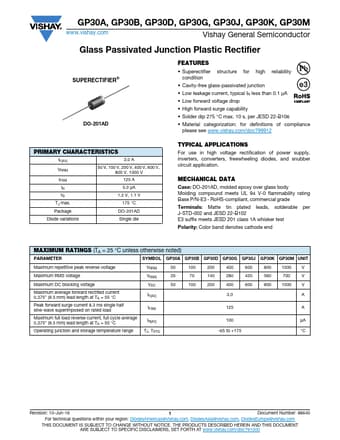

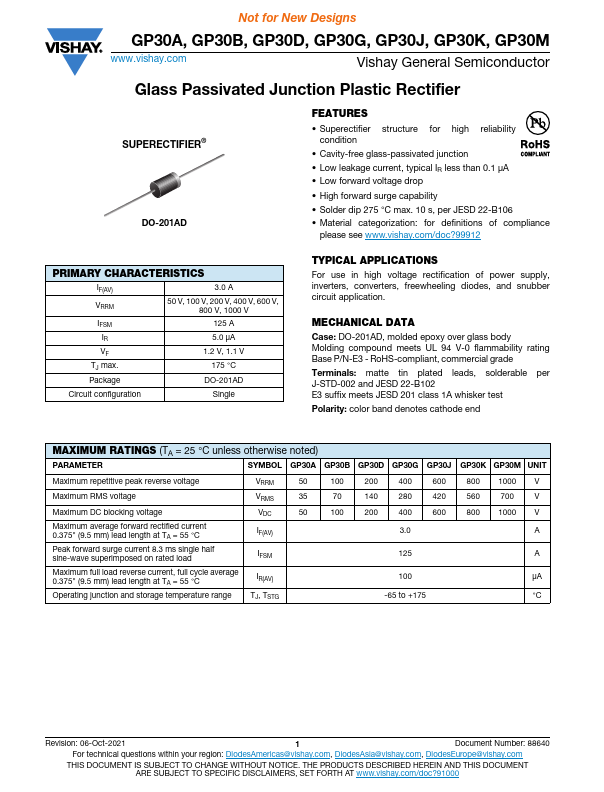

GP30B Datasheet Preview — This datasheet PDF includes multiple part numbers: GP30B, GP30A. Please refer to the document for exact specifications by model.

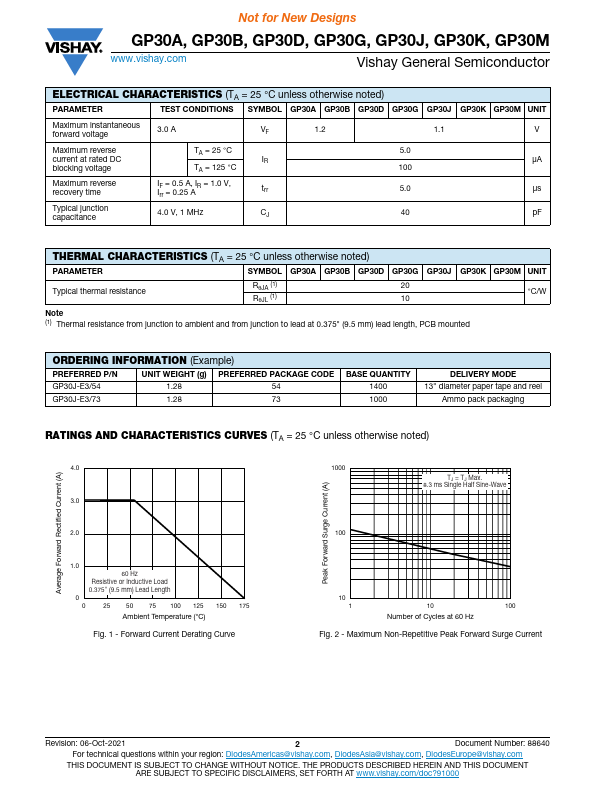

datasheet Preview Page 2

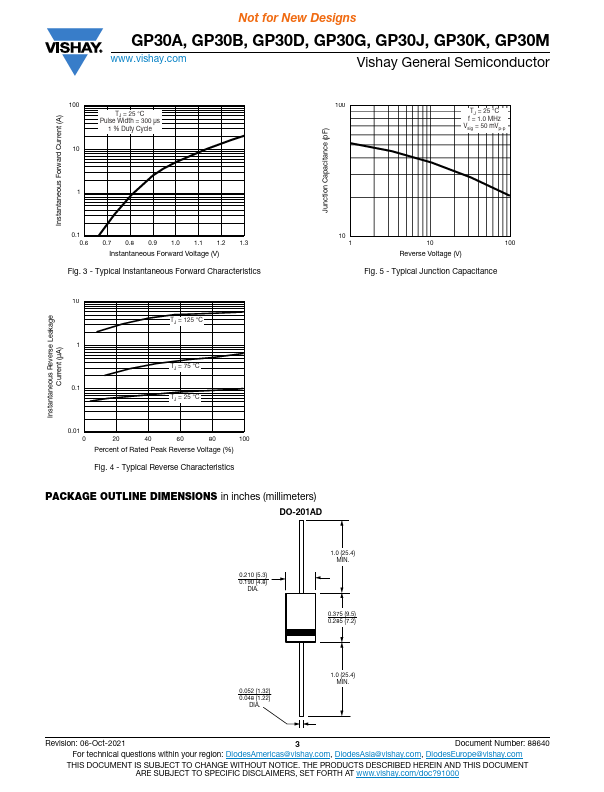

datasheet Preview Page 3

Datasheet Details

Part number	GP30B, GP30A
Manufacturer	Vishay ↗
File Size	67.87 KB
Description	Glass Passivated Junction Plastic Rectifier
Datasheet	GP30A-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: GP30B, GP30A. Please refer to the document for exact specifications by model.

GP30B Product details

Features

Superectifier structure for high reliability condition.
Cavity-free glass-passivated junction.
Low leakage current, typical IR less than 0.1 μA.
Low forward voltage drop.
High forward surge capability.
Solder dip 275 °C max. 10 s, per JESD 22-B106.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
