HIK1000, HIK101, High Voltage Ceramic Singlelayer DC Disc Capacitors

www.vishay.com HIK Series Vishay Draloric High Voltage Ceramic Singlelayer DC Disc Capacitors, Class 2, Low Loss (0.5 %), 15 kVDC .
Ceramic Class Ceramic Dielectric Voltage (VDC) Min.

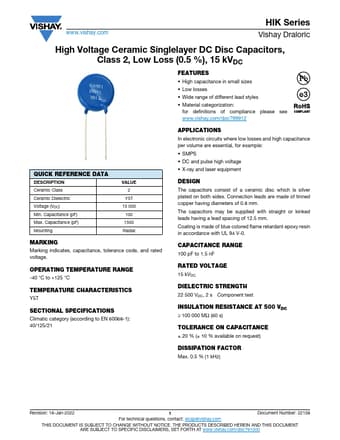

datasheet Preview Page 1 from Datasheet4u.com

HIK101-Vishay.pdf

HIK1000 Datasheet Preview — This datasheet PDF includes multiple part numbers: HIK1000, HIK101. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HIK1000, HIK101

Manufacturer:

Vishay ↗

File Size:

74.55 KB

Description:

High Voltage Ceramic Singlelayer DC Disc Capacitors

Note:

This datasheet PDF includes multiple part numbers: HIK1000, HIK101.
Please refer to the document for exact specifications by model.

Features

* High capacitance in small sizes
* Low losses
* Wide range of different lead styles

Applications

* In electronic circuits where low losses and high capacitance per volume are essential, for example:
* SMPS
* DC and pulse high voltage
* X-ray and laser equipment DESIGN The capacitors consist of a ceramic disc which is silver plated on both sides. Connection leads are made o
