HIK150

High Voltage Ceramic Singlelayer DC Disc Capacitors

HIK150 Features

* High capacitance in small sizes

* Low losses

* Wide range of different lead styles

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 QUICK REFERENCE DATA DESCRIPTION Ceramic Class Ceramic Dielectric Voltage (VDC) Min. Capa

HIK150 General Description

Ceramic Class Ceramic Dielectric Voltage (VDC) Min. Capacitance (pF) Max. Capacitance (pF) Mounting VALUE 2 Y5T 15 000 100 1500 Radial MARKING Marking indicates, capacitance, tolerance code, and rated voltage. OPERATING TEMPERATURE RANGE -40 °C to +125 °C TEMPERATURE CHARACTERISTICS Y5T SECTION.

HIK150 Datasheet (74.55 KB)

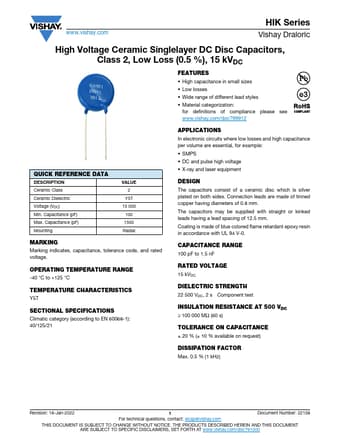

Preview of HIK150 PDF

Datasheet Details

Part number:

HIK150

Manufacturer:

Vishay ↗

File Size:

74.55 KB

Description:

High voltage ceramic singlelayer dc disc capacitors.
