HVCC103Y6P221 Datasheet - Vishay

HVCC103Y6P221 High Voltage Ceramic Capacitors

VALUE Ceramic Class 2 Ceramic Dielectric Y6P Temperature Coefficient of Capacitance ± 10 % within -30 °C to +105 °C Voltage (Urated, DC) Min. Capacitance (pF) 10 000 100 15 000 100 Max. Capacitance (pF) 2000 2000 Capacitance Tolerance ± 20 % Max. Dissipation Factor (%) 1.5 Min. Ins.

HVCC103Y6P221 Features

* Ceramic singlelayer DC disc / AC disc capacitor

* High reliability

* High

HVCC103Y6P221 Datasheet (179.64 KB)

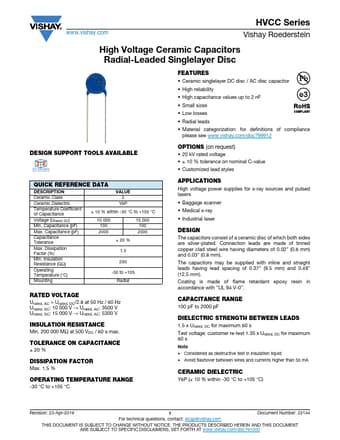

Preview of HVCC103Y6P221 PDF

Datasheet Details

Part number:

HVCC103Y6P221

Manufacturer:

Vishay ↗

File Size:

179.64 KB

Description:

High voltage ceramic capacitors.
