IDCP-3114 - Surface Mount Inductors

Product Overview

Vishay

Datasheet Details

Part number	IDCP-3114
Manufacturer	Vishay
File Size	84.16 KB
Description	Surface Mount Inductors
Datasheet	IDCP-3114 Datasheet

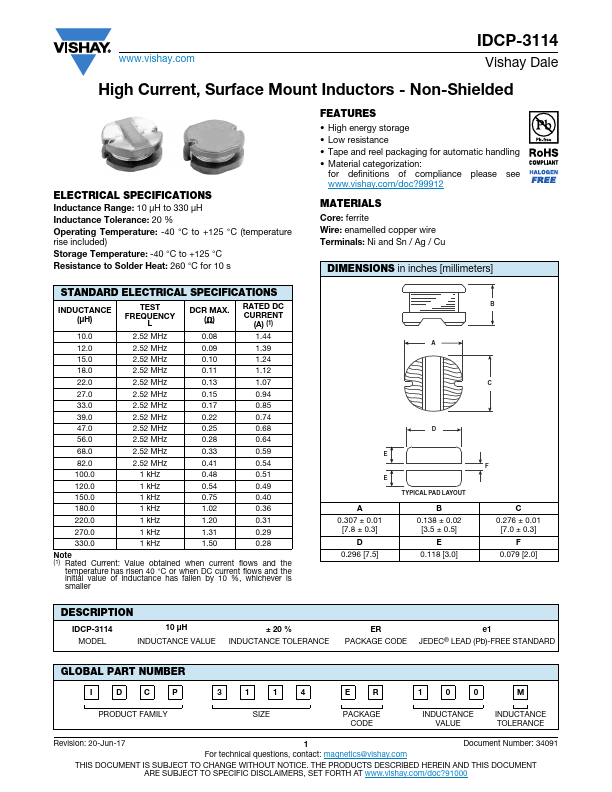

Additional preview pages of the IDCP-3114 datasheet.

Product details

Description

IDCP-3114 10 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e1 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I D C P 3 1 1 4 E R 1 0 0 M PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE INDUCTANCE TOLERANCE Revision: 20-Jun-17 1 Document Number: 34091 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIME

Features

High energy storage.
Low resistance.
Tape and reel packaging for automatic handling.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
