IFDC2525DZ - Ferrite Power Inductor

Vishay

The IFDC2525DZ by Vishay is a Ferrite Power Inductor. Below is the official datasheet preview.

📥 Download Datasheet

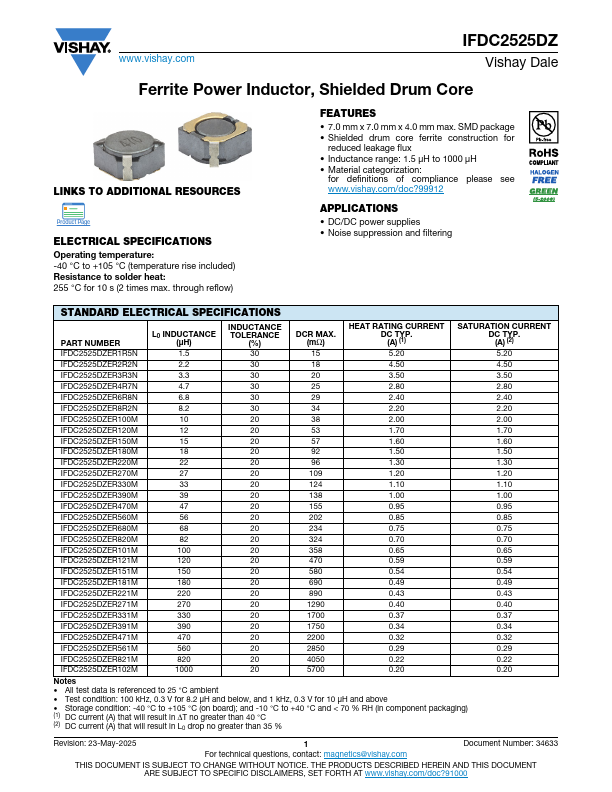

IFDC2525DZ Ferrite Power Inductor by Vishay - Datasheet Preview — Official preview page of the **IFDC2525DZ** Ferrite Power Inductor datasheet (Vishay).

Datasheet Details

Part number	IFDC2525DZ
Manufacturer	Vishay
File Size	77.21 KB
Description	Ferrite Power Inductor
Datasheet	IFDC2525DZ-Vishay.pdf

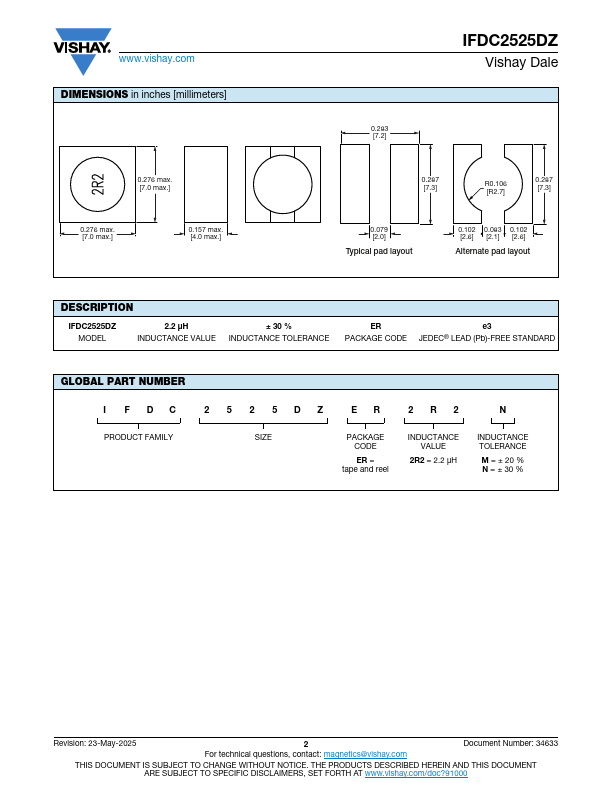

Additional preview pages of the IFDC2525DZ datasheet.

IFDC2525DZ Product details

Description

IFDC2525DZ MODEL 2.2 μH INDUCTANCE VALUE ± 30 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I FDC 2 5 2 5DZ ER 2R2 N PRODUCT FAMILY SIZE PACKAGE CODE ER = tape and reel INDUCTANCE VALUE 2R2 = 2.2 μH INDUCTANCE TOLERANCE M = ± 20 % N = ± 30 % Revision: 23-May-2025 2 Document Number: 34633 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN AND THI

Features

7.0 mm x 7.0 mm x 4.0 mm max. SMD package.
Shielded drum core ferrite construction for reduced leakage flux.
Inductance range: 1.5 μH to 1000 μH.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
