IFDC5050JZ Description

www.vishay.com IFDC5050JZ Vishay Dale Ferrite Power Inductor, Shielded Drum Core LINKS TO ADDITIONAL RESOURCES .
IFDC5050JZ MODEL 2.

IFDC5050JZ Features

* 12.5 mm x 12.5 mm x 10.0 mm max. SMD package
* Shielded drum core ferrite construction for reduced leakage flux
* Inductance range: 1 μH to 1200 μH
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Product Page ELECTRICAL

IFDC5050JZ Applications

* DC/DC power supplies
* Noise suppression and filtering STANDARD ELECTRICAL SPECIFICATIONS PART NUMBER IFDC5050JZER1R0N IFDC5050JZER1R8N IFDC5050JZER2R2N IFDC5050JZER3R3N IFDC5050JZER4R7N IFDC5050JZER5R6N IFDC5050JZER6R8N IFDC5050JZER8R2N IFDC5050JZER100M IFDC5050JZER120M IFDC5050

📥 Download Datasheet

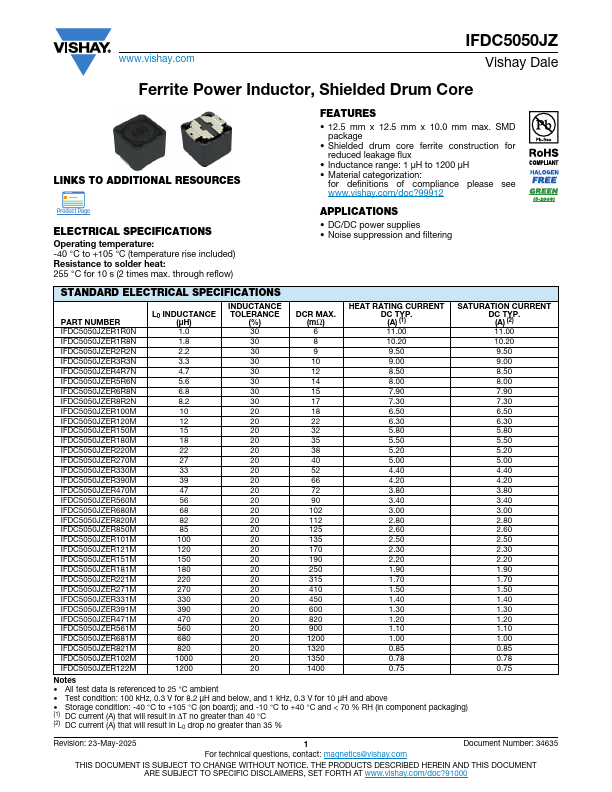

IFDC5050JZ Datasheet Preview — Preview of IFDC5050JZ PDF

Datasheet Details

Part number: IFDC5050JZ
Manufacturer: Vishay ↗
File Size: 72.45 KB
Datasheet: IFDC5050JZ-Vishay.pdf
Description: Ferrite Power Inductor
