IHA101EB Datasheet - Vishay

IHA101EB, Filter Inductors

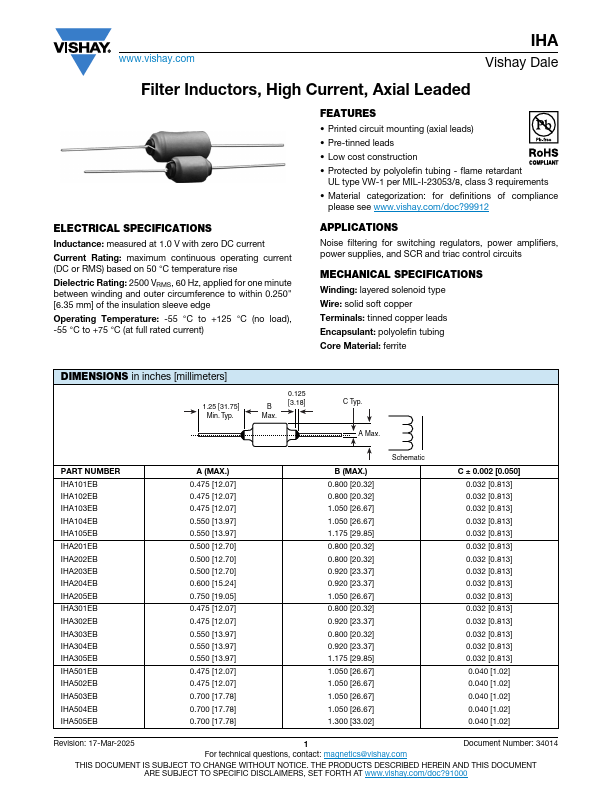

www.vishay.com IHA Vishay Dale Filter Inductors, High Current, Axial Leaded ELECTRICAL SPECIFICATIONS Inductance: measured at 1.0 V with zero DC cu.

IHA101EB-Vishay.pdf

IHA101EB Datasheet Preview — Preview of IHA101EB PDF

Datasheet Details

Part number:

IHA101EB

Manufacturer:

Vishay ↗

File Size:

84.03 KB

Description:

Filter Inductors

Features

* Printed circuit mounting (axial leads)
* Pre-tinned leads
* Low cost construction
* Protected by polyolefin tubing - flame retardant UL type VW-1 per MIL-I-23053/8, class 3 requirements
* Material categorization: for definitions of compliance please see www.

Applications

* Noise filtering for switching regulators, power amplifiers, power supplies, and SCR and triac control circuits MECHANICAL SPECIFICATIONS Winding: layered solenoid type Wire: solid soft copper Terminals: tinned copper leads Encapsulant: polyolefin tubing Core Material: ferrite DIMENSIONS in inches [
