IHA202EB, IHA101EB Filter Inductors

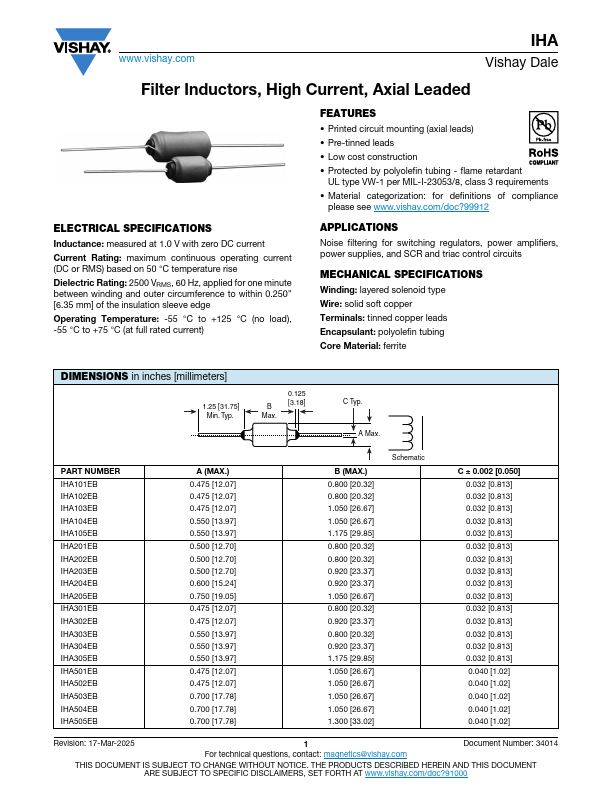

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.vishay.com IHA Vishay Dale Filter Inductors, High Current, Axial Leaded ELECTRICAL SPECIFICATIONS Inductance: measured at 1.0 V with zero DC cu.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IHA202EB, IHA101EB. Please refer to the document for exact specifications by model.

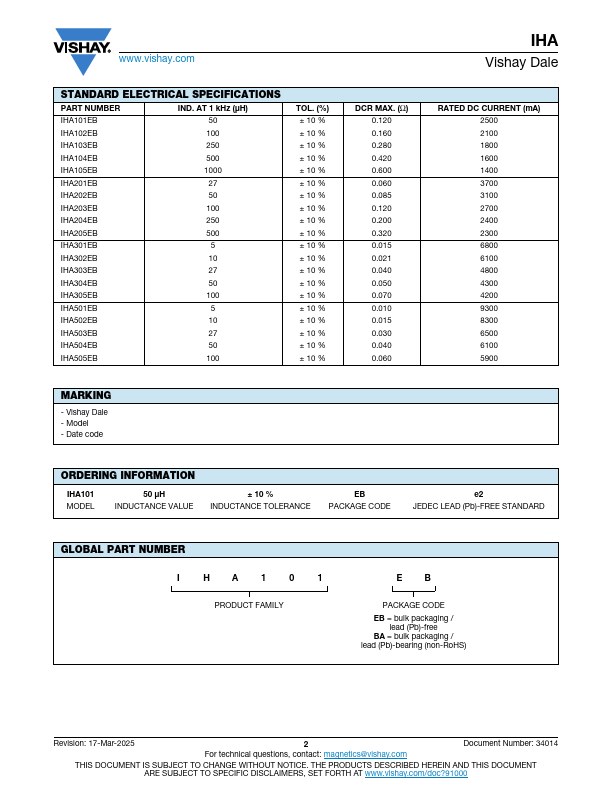

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IHA202EB, IHA101EB
Manufacturer
Vishay ↗
File Size
84.03 KB
Datasheet
IHA101EB-Vishay.pdf
Description
Filter Inductors
Note
This datasheet PDF includes multiple part numbers: IHA202EB, IHA101EB.
Please refer to the document for exact specifications by model.

Features

* Printed circuit mounting (axial leads)
* Pre-tinned leads
* Low cost construction
* Protected by polyolefin tubing - flame retardant UL type VW-1 per MIL-I-23053/8, class 3 requirements
* Material categorization: for definitions of compliance please see www.

Applications

* Noise filtering for switching regulators, power amplifiers, power supplies, and SCR and triac control circuits MECHANICAL SPECIFICATIONS Winding: layered solenoid type Wire: solid soft copper Terminals: tinned copper leads Encapsulant: polyolefin tubing Core Material: ferrite DIMENSIONS in inches [
