Description

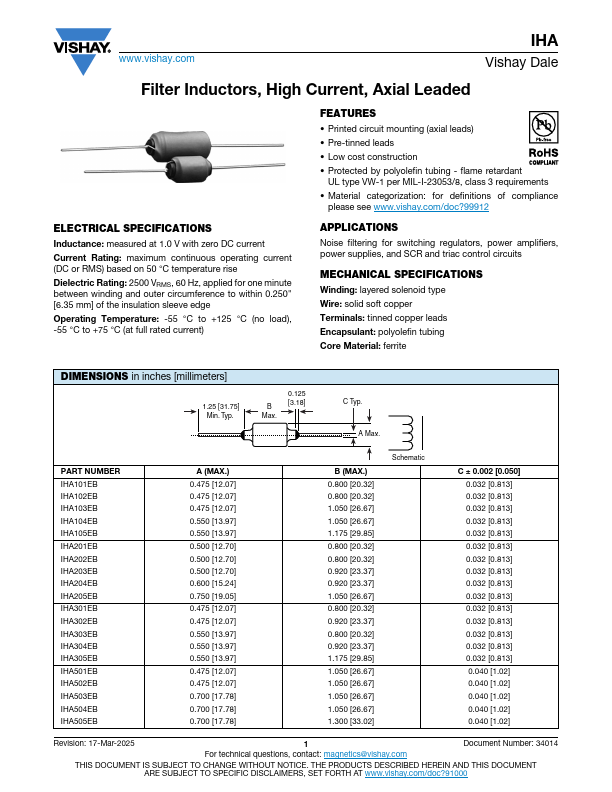

www.vishay.com IHA Vishay Dale Filter Inductors, High Current, Axial Leaded ELECTRICAL SPECIFICATIONS Inductance: measured at 1.0 V with zero DC cu.

📥 Download Datasheet

IHA303EB Datasheet Preview — This datasheet PDF includes multiple part numbers: IHA303EB, IHA101EB. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IHA303EB, IHA101EB
Manufacturer: Vishay ↗
File Size: 84.03 KB
Datasheet: IHA101EB-Vishay.pdf
Description: Filter Inductors
Note: This datasheet PDF includes multiple part numbers: IHA303EB, IHA101EB.
Please refer to the document for exact specifications by model.

Features

* Printed circuit mounting (axial leads)
* Pre-tinned leads
* Low cost construction
* Protected by polyolefin tubing - flame retardant UL type VW-1 per MIL-I-23053/8, class 3 requirements
* Material categorization: for definitions of compliance please see www.

Applications

* Noise filtering for switching regulators, power amplifiers, power supplies, and SCR and triac control circuits MECHANICAL SPECIFICATIONS Winding: layered solenoid type Wire: solid soft copper Terminals: tinned copper leads Encapsulant: polyolefin tubing Core Material: ferrite DIMENSIONS in inches [
