ILD213T, ILD205T Optocoupler

Vishay

Description

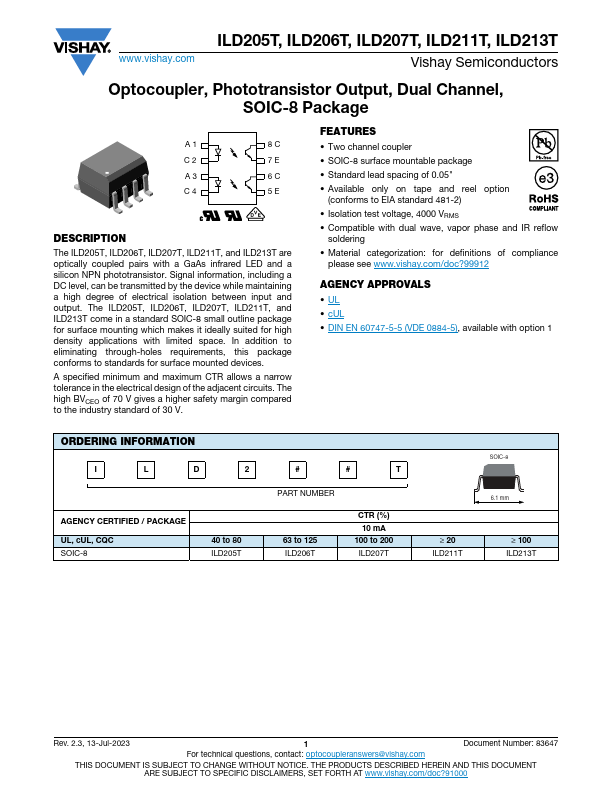

ILD205T, ILD206T, ILD207T, ILD211T, ILD213T www.vishay.com Vishay Semiconductors Optocoupler, Phototransistor Output, Dual Channel, SOIC-8 Package .
The ILD205T, ILD206T, ILD207T, ILD211T, and ILD213T are optically coupled pairs with a GaAs infrared LED and a silicon NPN phototransistor.

📥 Download Datasheet

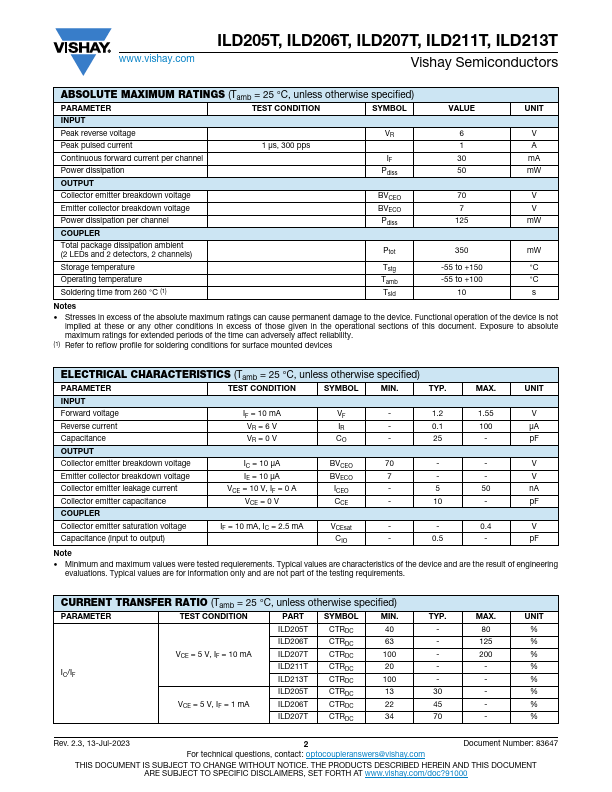

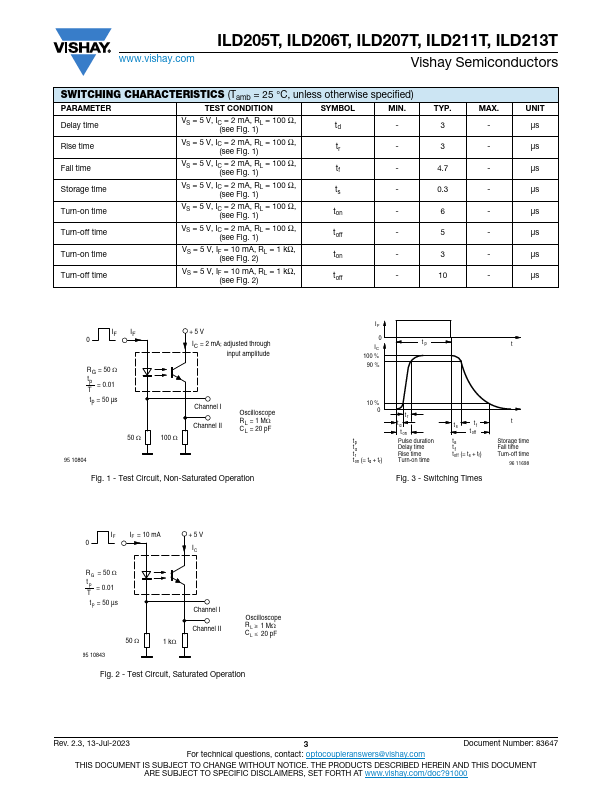

ILD213T Datasheet Preview — This datasheet PDF includes multiple part numbers: ILD213T, ILD205T. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ILD213T, ILD205T
Manufacturer: Vishay ↗
File Size: 155.18 KB
Datasheet: ILD205T-Vishay.pdf
Description: Optocoupler
Note: This datasheet PDF includes multiple part numbers: ILD213T, ILD205T.
Please refer to the document for exact specifications by model.

Features

* Two channel coupler
* SOIC-8 surface mountable package
* Standard lead spacing of 0.05"
* Available only on tape and reel option (conforms to EIA standard 481-2)
* Isolation test voltage, 4000 VRMS
* Compatible with dual wave, vapor phase and IR refl

Applications

* with limited space. In addition to eliminating through-holes requirements, this package conforms to standards for surface mounted devices. A specified minimum and maximum CTR allows a narrow tolerance in the electrical design of the adjacent circuits. The high BVCEO of 70 V gives a higher safety mar
