ILD211T Dual Phototransistor

The ILD205T/206T/207T/211T/213T/217T are optically coupled pairs with a Gallium Arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The IL.

ILD211T Features

* Two Channel Coupler

* SOIC-8A Surface Mountable Package

* Standard Lead Spacing of .05"

* Available only on Tape and Reel Option (Conforms to EIA Standard 481-2)

* Isolation Test Voltage, 3000 VRMS

* High Current Transfer Ratios ILD205T, 40

ILD205T-Infineon.pdf

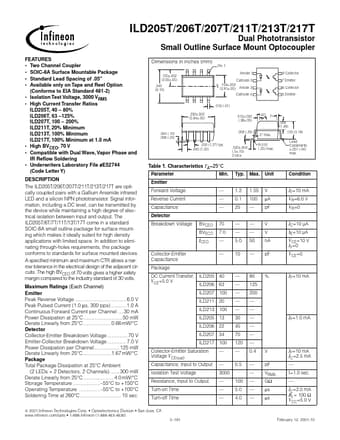

ILD211T Datasheet Preview — This datasheet PDF includes multiple part numbers: ILD211T, ILD205T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ILD211T, ILD205T

Manufacturer:

Infineon ↗

File Size:

392.46 KB

Description:

Dual phototransistor.

Note:

This datasheet PDF includes multiple part numbers: ILD211T, ILD205T.
Please refer to the document for exact specifications by model.
