ILD213T

Dual Phototransistor

ILD213T Features

* Two Channel Coupler

* SOIC-8A Surface Mountable Package

* Standard Lead Spacing of .05"

* Available only on Tape and Reel Option (Conforms to EIA Standard 481-2)

* Isolation Test Voltage, 3000 VRMS

* High Current Transfer Ratios ILD205T, 40

ILD213T General Description

The ILD205T/206T/207T/211T/213T/217T are optically coupled pairs with a Gallium Arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The IL.

ILD213T Datasheet (392.46 KB)

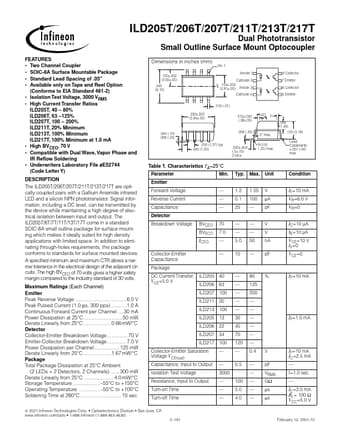

Preview of ILD213T PDF

Datasheet Details

Part number:

ILD213T

Manufacturer:

Infineon ↗

File Size:

392.46 KB

Description:

Dual phototransistor.
