KBL02, KBL005, Single-Phase Bridge Rectifier

KBL005, KBL01, KBL02, KBL04, KBL06, KBL08, KBL10 www.vishay.com Vishay General Semiconductor Single-Phase Bridge Rectifier ~~ ~~ Case Style KBL .

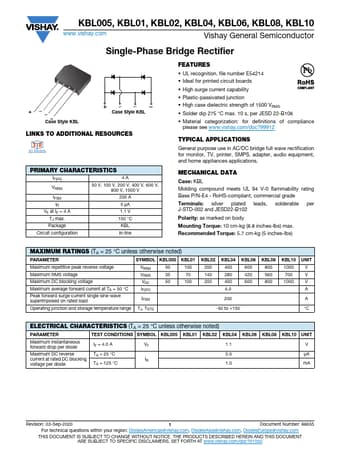

datasheet Preview Page 1 from Datasheet4u.com

KBL005-Vishay.pdf

KBL02 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBL02, KBL005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KBL02, KBL005

Manufacturer:

Vishay ↗

File Size:

90.43 KB

Description:

Single-Phase Bridge Rectifier

Note:

This datasheet PDF includes multiple part numbers: KBL02, KBL005.
Please refer to the document for exact specifications by model.

Features

* UL recognition, file number E54214
* Ideal for printed circuit boards
* High surge current capability
* Plastic-passivated junction
* High case dielectric strength of 1500 VRMS
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material catego

Applications

* General purpose use in AC/DC bridge full wave rectification for monitor, TV, printer, SMPS, adapter, audio equipment, and home appliances applications. MECHANICAL DATA Case: KBL Molding compound meets UL 94 V-0 flammability rating Base P/N-E4 - RoHS-compliant, commercial grade Terminals: silver plat
