LH1550AT1 Datasheet, Relay, Vishay

LH1550AT1 Features

  • Relay
  • Isolation test voltage 5300 VRMS A1 6 S1
  • Typical RON 22 Ω
  • Load voltage 350 V C2 5 NC
  • Load current 100 mA
  • Clean bounce free swi

PDF File Details

Part number:

LH1550AT1

Manufacturer:

Vishay ↗

File Size:

203.05kb

Download:

📄 Datasheet

Description:

1 form a solid-state relay. The LH1550 is a single channel solid-state relay in a 6 pin package. It is a SPST normally open switch (1 Form A) that replaces elect

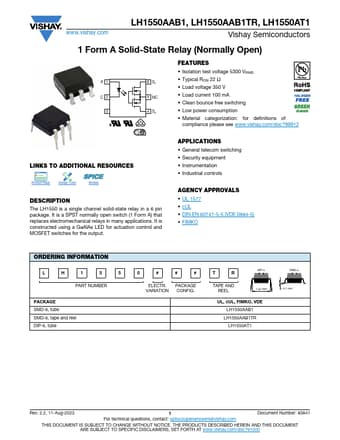

Datasheet Preview: LH1550AT1 📥 Download PDF (203.05kb)
Page 2 of LH1550AT1 Page 3 of LH1550AT1

LH1550AT1 Application

  • Applications It is constructed using a GaAlAs LED for actuation control and MOSFET switches for the output. APPLICATIONS
  • General telecom
