LH1550 HIGH VOLTAGE/ SOLID STATE RELAY OPTOCOUPLER

The LH1550 is a single pole single throw (SPST), normally open (NO), solid state relay. The relay can control AC or DC loads currents up to 100 mA, with a supply voltage up to 350 V. The device is packaged in a six pin 0.3 inch dualin line package. This package offers an insulation dielectric withst.

LH1550 Features

* Normally Open, Single Pole Single Throw Operation

* Control 350 VAC or DC Voltage

* Switch 100 mA Loads

* LED Control Current, 2.5 mA

* Low ON-Resistance, 37 Ω Typ. at 100 mA

* Isolation Test Voltage, 3750 VACRMS

* Current Limit Protection

LH1550_SiemensSemiconductorGroup.pdf

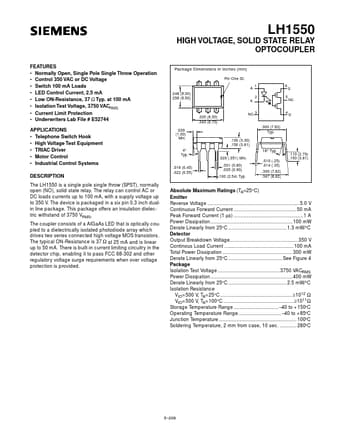

Preview of LH1550 PDF
