LH1540 HIGH VOLTAGE/ SOLID STATE RELAY OPTOCOUPLER

The LH1540 is a single pole single throw (SPST), normally open (NO), solid state relay. The relay can control AC or DC loads currents up to 100 mA, with a supply voltage up to 350 V. The device is packaged in a six pin 0.3 inch dual-in line package. This package offers an insulation dielectric withs.

LH1540 Features

* Normally Open, Single Pole Single Throw Operation

* Control 350 VAC or DC Voltage

* Switch 150 mA Loads

* LED Control Current, 1 mA, Typical

* Low ON-Resistance, 20 Ω Typ. at 50 mA

* Isolation Test Voltage, 3750 VACRMS

* Current Limit Protect

LH1540_SiemensSemiconductorGroup.pdf

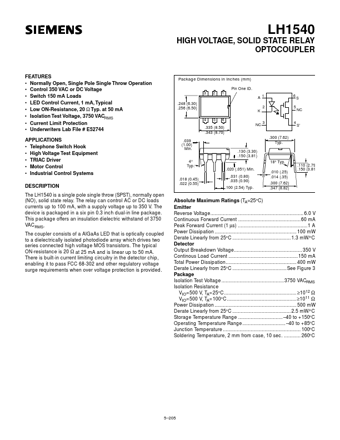

LH1540 Datasheet Preview — Preview of LH1540 PDF

Datasheet Details

Part number:

LH1540

Manufacturer:

Siemens Semiconductor Group

File Size:

49.56 KB

Description:

High voltage/ solid state relay optocoupler.
