LH1541AAB1 - 1 Form A Solid State Relay

LH1541AAB1 Description

www.DataSheet4U.com LH1541AT1/AAB1/AAB1TR 1 Form A Solid State Relay (Low Capacitance) .
These SSRs (LH1541, 1 Form A) are SPST normally open switches which can replace electromechanical relays in many applications.

LH1541AAB1 Features

* Low Capacitance Switch (5.0 pF)
* l/O Isolation, 5300 VRMS
* Extremely High OFF-resistance (100 TΩ)
* Load Voltage 350 V
* Linear, AC/DC Operation
* Clean Bounce Free Switching
* Low Power Consumption
* High Reliability Monolithic Rec

LH1541AAB1 Applications

* Instrumentation
* Thermocouple Switching
* Analog Multiplexing
* Reed Relay Replacement
* Programmable Logic Controllers
* Data Acquisition

📥 Download Datasheet

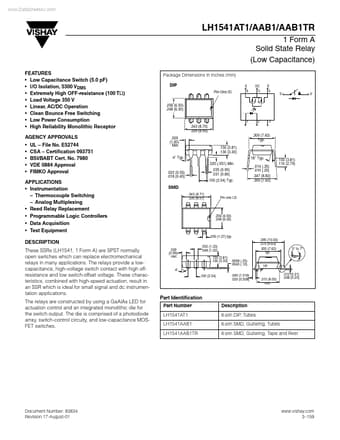

Preview of LH1541AAB1 PDF
