LH1540AT

1 Form A Solid State Relay

LH1540AT Features

* Current Limit Protection

* l/O Isolation, 5300 VRMS

* Typical RON 20 Ω, max 25 Ω

* Load Voltage 350 V

* Load Current 120 mA

* High Surge Capability

* Linear, AC/DC Operation

* Clean Bounce Free Switching

* Low Power Consumptio

LH1540AT General Description

The LH1540 is robust, ideal for telecom and ground fault applications. It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAIAs LED for actuation control and an integrated monolithic die for the switch output. The die,.

LH1540AT Datasheet (90.48 KB)

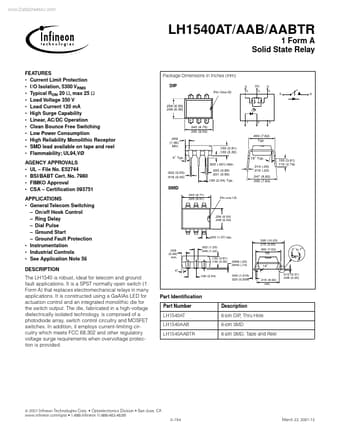

Preview of LH1540AT PDF

Datasheet Details

Part number:

LH1540AT

Manufacturer:

Infineon ↗ Technologies

File Size:

90.48 KB

Description:

1 form a solid state relay.
