LH1541AAB1TR 1 Form A Solid State Relay

These SSRs (LH1541, 1 Form A) are SPST normally open switches which can replace electromechanical relays in many applications. The relays provide a lowcapacitance, high-voltage switch contact with high offresistance and low switch-offset voltage. These characteristics, combined with high-speed actua.

LH1541AAB1TR Features

* Low Capacitance Switch (5.0 pF)

* l/O Isolation, 5300 VRMS

* Extremely High OFF-resistance (100 TΩ)

* Load Voltage 350 V

* Linear, AC/DC Operation

* Clean Bounce Free Switching

* Low Power Consumption

* High Reliability Monolithic Rec

LH1541AAB1_VishaySiliconix.pdf

This datasheet PDF includes multiple part numbers: LH1541AAB1TR, LH1541AAB1. Please refer to the document for exact specifications by model.

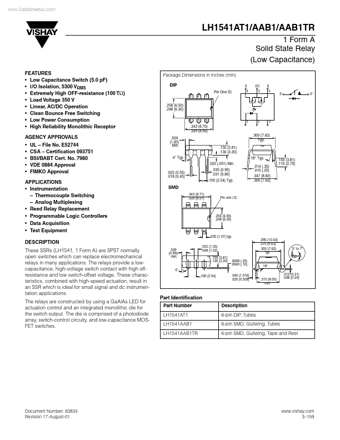

LH1541AAB1TR Datasheet Preview Page 2 LH1541AAB1TR Datasheet Preview Page 3

Datasheet Details

Part number:

LH1541AAB1TR, LH1541AAB1

Manufacturer:

Vishay ↗ Siliconix

File Size:

411.77 KB

Description:

1 form a solid state relay.

Note:

This datasheet PDF includes multiple part numbers: LH1541AAB1TR, LH1541AAB1.
Please refer to the document for exact specifications by model.
