LH1546AAB-E3

1 Form A Solid State Relay

LH1546AAB-E3 Features

* Current Limit Protection Isolation Test Voltage 5300 VRMS Typical RON 28 Ω Load Voltage 350 V Load Current 120 mA High Surge Capability Clean Bounce Free Switching Low Power Consumption High Reliabili

LH1546AAB-E3 General Description

The LH1546 is robust, ideal for telecom and ground fault applications. It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAIAs LED for actuation control and an integrated monolithic die for the switch output. The die,.

LH1546AAB-E3 Datasheet (178.39 KB)

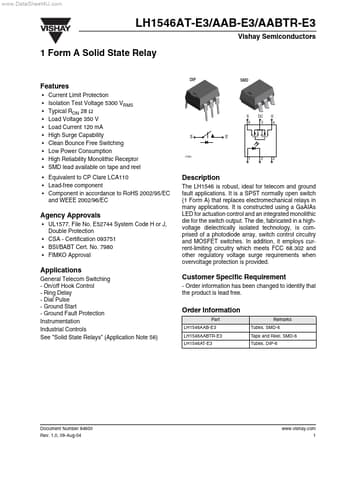

Preview of LH1546AAB-E3 PDF

Datasheet Details

Part number:

LH1546AAB-E3

Manufacturer:

Vishay ↗ Siliconix

File Size:

178.39 KB

Description:

1 form a solid state relay.
