LH1546ADFTR

1 Form A Solid State Relay

LH1546ADFTR Features

* Current Limit Protection Isolation Test Voltage 5300 VRMS Typical RON 28 Ω Load Voltage 350 V Load Current 120 mA High Surge Capability Linear, AC/DC Operation Clean Bounce Free Switching Low Power Co

LH1546ADFTR General Description

The LH1546AD (4 Pin DIP) is robust, ideal for telecom and ground fault applications. It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAs LED for actuation control and an integrated monolithic die for the switch outp.

LH1546ADFTR Datasheet (164.21 KB)

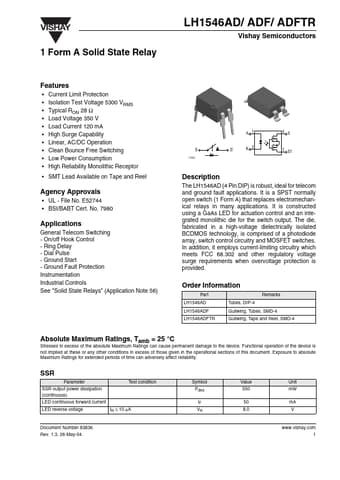

Preview of LH1546ADFTR PDF

Datasheet Details

Part number:

LH1546ADFTR

Manufacturer:

Vishay ↗ Siliconix

File Size:

164.21 KB

Description:

1 form a solid state relay.
