M100M, M100A General Purpose Plastic Rectifier

M100M Description

General Purpose Plastic Rectifier M100A thru M100M Vishay General Semiconductor Major Ratings and Characteristics IF(AV) VRRM IFSM IR VF Tj max.1.

M100M Features

* Low forward voltage drop
* Low leakage current
* High forward surge capability

M100M Applications

* For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application. (Note: These devices are not Q101 qualified. Therefore, the devices specified in this datasheet have not been designed for use in automotive or Hi-Rel applications. ) Mechanical Dat

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M100M, M100A. Please refer to the document for exact specifications by model.

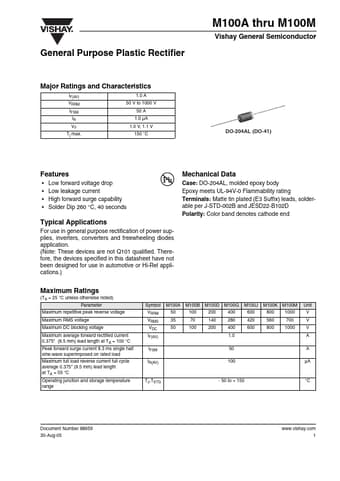

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M100M, M100A
Manufacturer
Vishay ↗
File Size
187.74 KB
Datasheet
M100A-Vishay.pdf
Description
General Purpose Plastic Rectifier
Note
This datasheet PDF includes multiple part numbers: M100M, M100A.
Please refer to the document for exact specifications by model.
