M100D - GENERAL PURPOSE PLASTIC RECTIFIER

Product Overview

General Semiconductor

Part number	M100D
Manufacturer	General Semiconductor
File Size	44.86 KB
Description	GENERAL PURPOSE PLASTIC RECTIFIER
Datasheet	M100D Datasheet

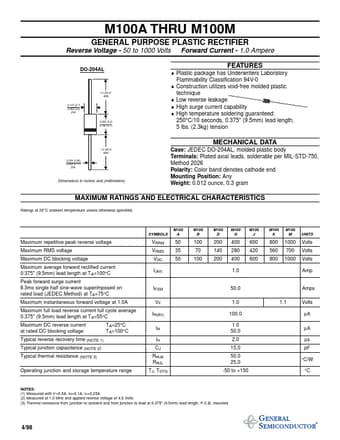

Additional preview pages of the M100D datasheet.

1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1).
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Construction utilizes void-free molded plastic technique.
Low reverse leakage.
High surge current capability.
High temperature soldering guaranteed: 250°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension.
