M100J

GENERAL PURPOSE PLASTIC RECTIFIER

M100J Features

* 1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1)

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0

* Construction utilizes void-free molded plastic technique

* Low reverse leakage

* High surge current capability

M100J Datasheet (44.86 KB)

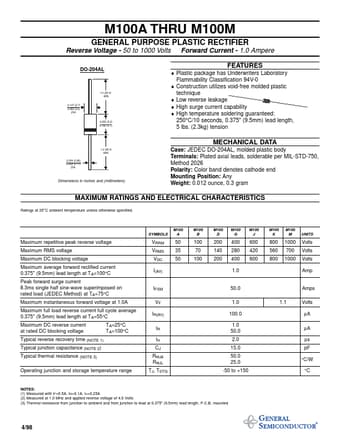

Preview of M100J PDF

Datasheet Details

Part number:

M100J

Manufacturer:

General Semiconductor

File Size:

44.86 KB

Description:

General purpose plastic rectifier.
