MBR1635 Datasheet - Vishay

MBR1635 Schottky Barrier Rectifier

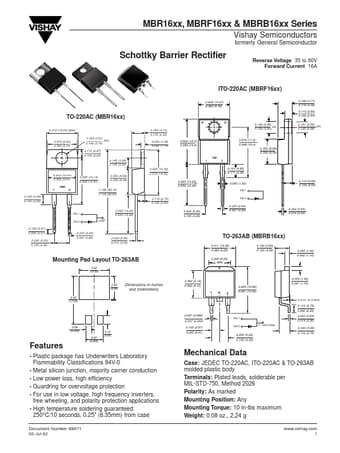

MBR16xx, MBRF16xx & MBRB16xx Series Vishay Semiconductors formerly General Semiconductor Schottky Barrier Rectifier Reverse Voltage 35 to 60V Forward Current 16A ITO-220AC (MBRF16xx) TO-220AC (MBR16xx) 0.415 (10.54) MAX. 0.370 (9.40) 0.360 (9.14) 0.154 (3.91) DIA. 0.148 (3.74) 0.113 (2.87) 0.103 (2.62) 0.145 (3.68) 0.135 (3.43) 0.160 (4.06) 0.140 (3.56) 0.410 (10.41) 0.390 (9.91) PIN 12 0.635 (16.13) 0.625 (15.87) 0.350 (8.89) 0.330 (8.38) 1.148 (29.16) 1.118 (28.40) 0.105 (2.67) .

MBR1635 Features

* 0.24 (6.096) 0.12 (3.05)

* Plastic package has Underwriters Laboratory Flammability Classifications 94V-0

* Met
