MBR3035PT, Dual Common Cathode Schottky Rectifier

MBR3035PT, MBR3045PT, MBR3050PT, MBR3060PT www.vishay.com Vishay General Semiconductor Dual Common Cathode Schottky Rectifier 3 2 1 TO-247AD (TO-3.

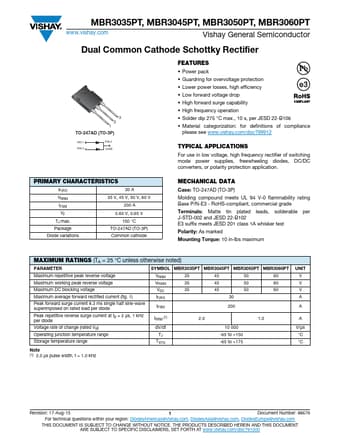

datasheet Preview Page 1 from Datasheet4u.com

MBR3035PT-Vishay.pdf

MBR3035PT Datasheet Preview — Preview of MBR3035PT PDF

Datasheet Details

Part number:

MBR3035PT

Manufacturer:

Vishay ↗

File Size:

83.86 KB

Description:

Dual Common Cathode Schottky Rectifier

Features

* Power pack
* Guardring for overvoltage protection
* Lower power losses, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder dip 275 °C max. , 10 s, per JESD 22-B106
* Material

Applications

* For use in low voltage, high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters, or polarity protection application. PRIMARY CHARACTERISTICS IF(AV) 30 A VRRM 35 V, 45 V, 50 V, 60 V IFSM 200 A VF 0.60 V, 0.65 V TJ max. Package 150 °C TO-247AD (TO-3P)
