NTCLE203E3 - NTC Thermistors

These thermistors are made of NTC ceramic material.

The device consists of a chip with two tinned nickel leads.

The parts are coated and color band marked.

Tape and reel versions available on request.

PACKAGING The thermistors are packed in cardboard boxes; the smallest packing quantity is 500 unit

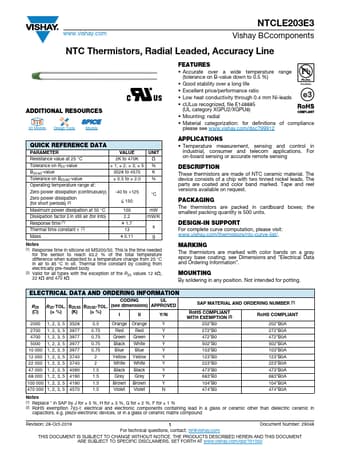

www.vishay.com NTCLE203E3 Vishay BCcomponents NTC Thermistors, Radial Leaded, Accuracy Line ADDITIONAL RESOURCES 3D 3D 3D Models Design Tools Models QUICK REFERENCE DATA PARAMETER VALUE UNIT Resistance value at 25 °C 2K to 470K  Tolerance on R25-value B25/85-value Tolerance on B25/85-value Operating temperature range at: ± 1; ± 2; ± 3; ± 5 3528 to 4570 ± 0.5 to ± 2.0 % K % Zero power dissipation (continuously) Zero power dissipation (for short periods) (2) -40 to +125  150

NTCLE203E3 Features

* Accurate over a wide temperature range (tolerance on B-value down to 0.5 %)

* Good stability over a long life Available

* Excellent price/performance ratio

* Low heat conductivity through 0.4 mm Ni-leads

* cULus recognized, file E148885  (UL category
