NTCLE203E3302SB0, NTCLE203E3202SB0 Datasheet - Vishay

NTCLE203E3302SB0 - NTC Thermistors

These thermistors consist of a NTC ceramic chip with two solid tin plated nickel leads.

The thermistor body is coated with a blue insulating lacquer.

PACKAGING The thermistors are packed in bulk (quantity = 500 pieces).

Tape and reel available on request.

DESIGN-IN SUPPORT For complete curve compu

www.vishay.com NTCLE203E3SB0 Vishay BCcomponents NTC Thermistors, 2-Point Radial Leaded, Automotive Grade LINKS TO ADDITIONAL RESOURCES Design Tools Models Related Documents 3D 3D 3D Models QUICK REFERENCE DATA PARAMETER VALUE UNIT Resistance value at 25 °C 2.06K to 30K Ω Tolerance on R25-value B25/85-value Tolerance on B25/85-value Operating temperature range ± 1.93 to ± 2.20 % 3528 to 4090 K ± 0.5 to ± 0.75 % -55 to +150 °C Temperature accuracy between 25 °C and 85 °C ± 0.

NTCLE203E3302SB0 Features

* High accuracy over a wide temperature range

* High stability over a long life

* Exceptional thermal shock withstanding performance

* AEC-Q200 qualified

* Mounting: radial

* Fulfills the ELV 2000/53/EC

* Material categorization: for definition

NTCLE203E3202SB0-Vishay.pdf

NTCLE203E3302SB0 Datasheet Preview — This datasheet PDF includes multiple part numbers: NTCLE203E3302SB0, NTCLE203E3202SB0. Please refer to the document for exact specifications by model.

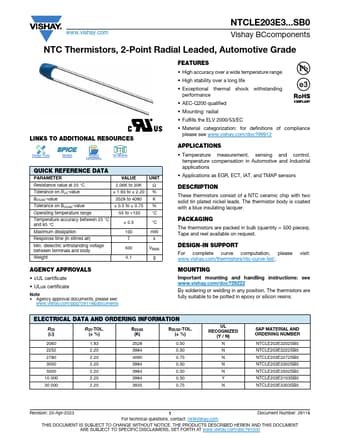

NTCLE203E3302SB0 Datasheet Preview Page 2

NTCLE203E3302SB0 Datasheet Preview Page 3

Datasheet Details

Part number:

NTCLE203E3302SB0, NTCLE203E3202SB0

Manufacturer:

Vishay ↗

File Size:

114.23 KB

Description:

Ntc thermistors.

Note:

This datasheet PDF includes multiple part numbers: NTCLE203E3302SB0, NTCLE203E3202SB0.
Please refer to the document for exact specifications by model.
